Adapting Electric Power Steering Kit For Sandrails Dune Buggies UTV Side x Side.

Description

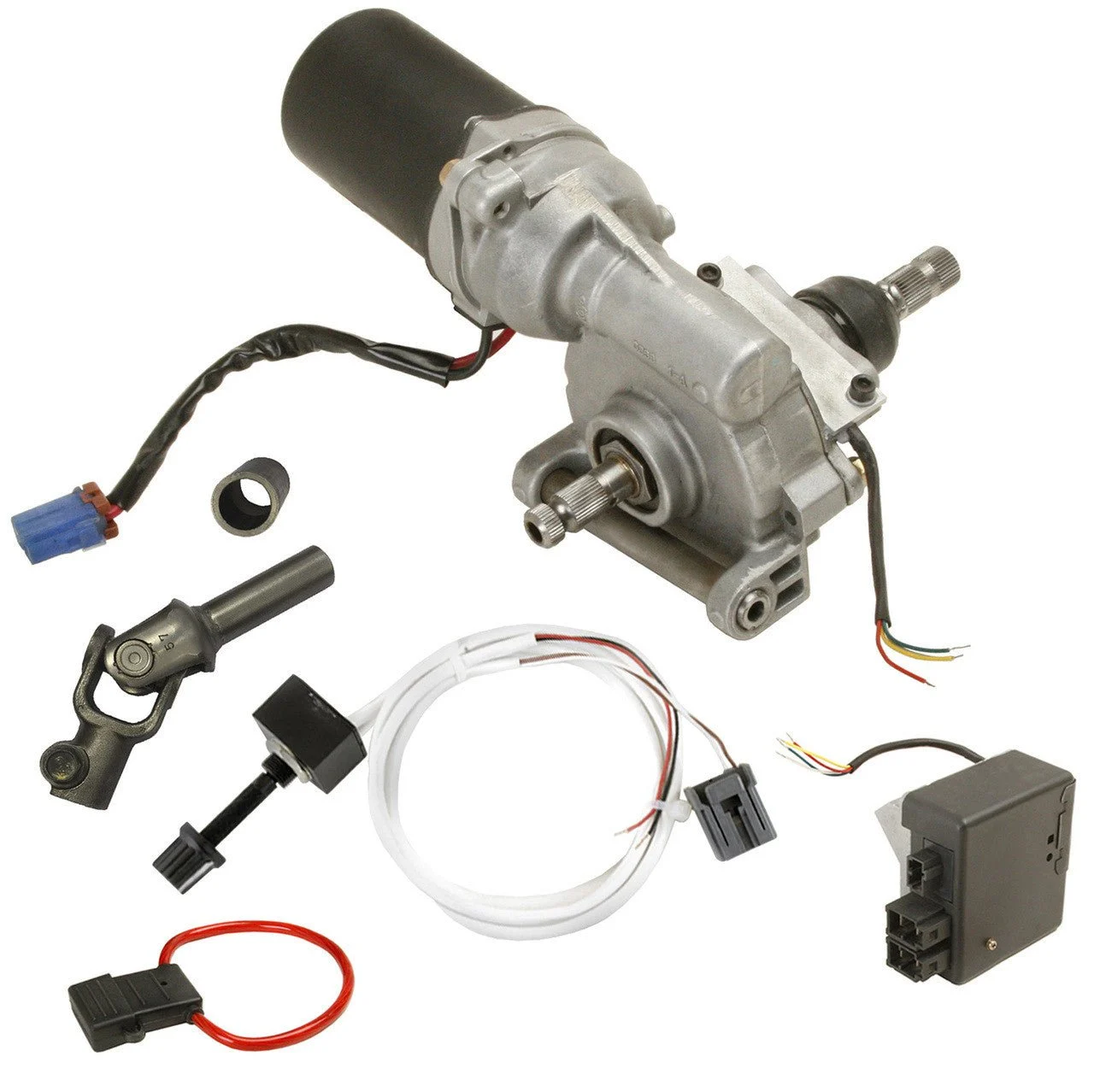

Universal Electronic Power Steering Kit. This Power Steering Assist Kit Works In Conjunction With Manual Steering Boxes And Off-road Rack & Pinions. Ideal For Sandrails, Dune Buggies, Baja Bugs, Manx Buggies, UTV Side X Side, Most Vehicles With Manual Factory Steering Boxes. This Unit Is Race Proven On Sportsman And Pre-Runner Cars. The Front Side That Faces The Rack & Pinion Includes A U-Joint With 4-1/2″ Length Shaft With A 3/4″ Female Sleeve And The Back Side That Runs Up To The Steering Wheel Has A 3/4″-36 Spline Stub.r rThis Kit Includes:rDetailed Installation Instructions And Packing Slip/Parts ListrQty 1 Rebuilt & Reconfigured Fully Tested Chevy Equinox EPS UnitrQty 1 EPS Control UnitrQty 1 Controller ModulerQty 1 Variable Adjustment KnobrQty 1 16.5mm Output U-Joint And Shaft With 3/4″ Female Adapter SleeverQty 1 Sensor PigtailrQty 1 Power Plug PigtailrQty 1 Maxi Blade Fuse Holder With 50 Amp Blade Fuser rSpecs:rMotor Voltage: 12 Volt DCrMax Current Rating: 58 Amp (Peak)rMotor Type: Brushed DCrControl Box Dimensions: 4″ x 4.5″ x 2.75″rMain Unit: 11.5″ Tall x 6.5″ Wide x 4.5″ Thick. Shaft to Shaft measurement is 8-5/8″r rConnection Requirements Are A +12V Supply Which Has The 50 Amp Fuse Or Circuit Breaker Fitted Or A +12V Supply Switched Through The Ignition Switch.r**IMPORTANT** This Supply MUST NOT Have Any Pumps, Heaters Or Motors In The Same Circuit As This Could Damage The Unit.r rNote: EPS Simply Uses An Electric Motor To Provide The Assist Rather Than Use A Hydraulic Pressure System. The EPS System Is More Efficient Than Hydraulic Systems Since It Only Needs To Provide Assist When The Driver Is Actually Steering, Rather Than Rotating The Pump Constantly.
