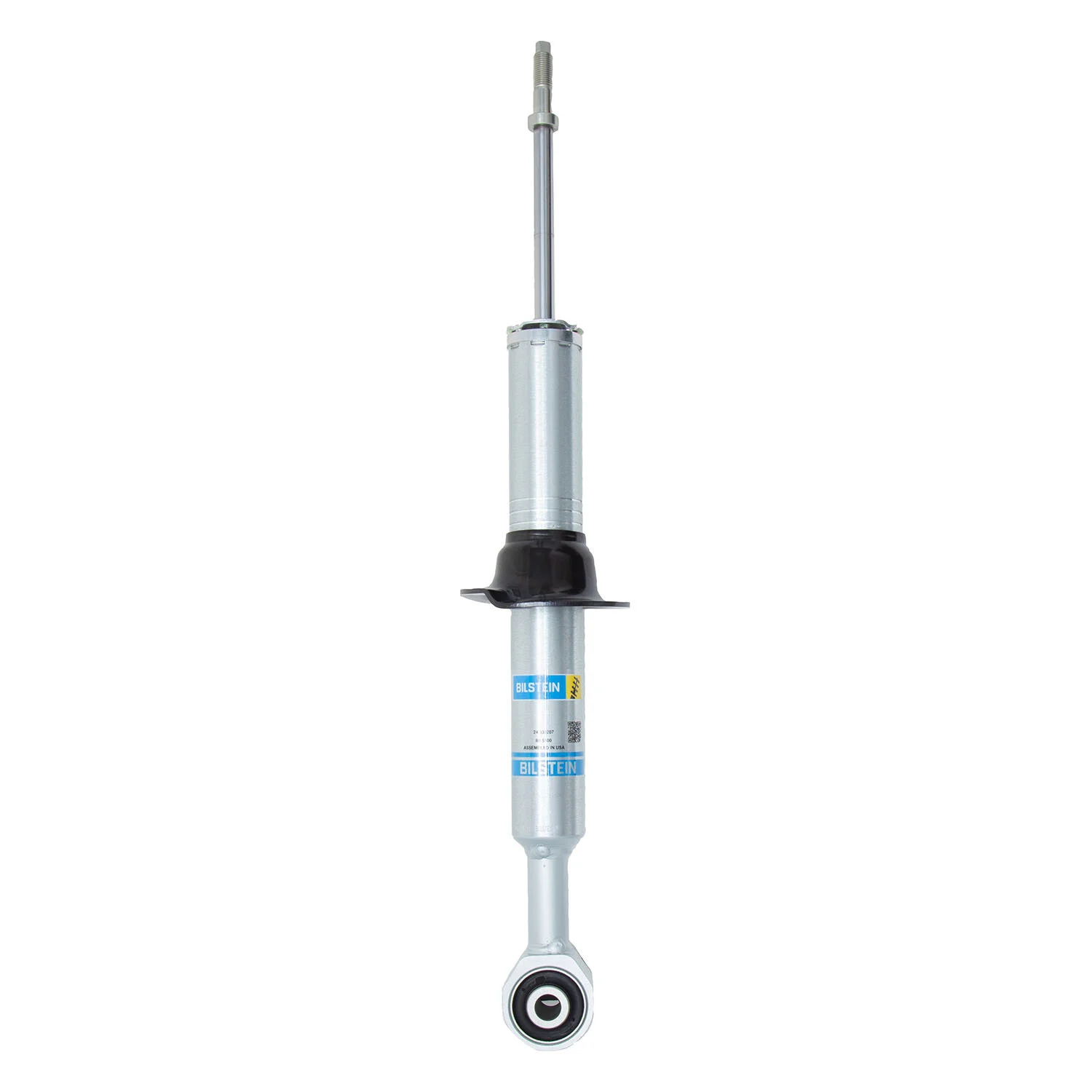

Bilstein 24-333207 B8 5100 (Ride Height Adjustable) Front Shock Absorber for 24-26 Toyota Tacoma

Description

Description

Bilstein B8 5100 monotube design: Provides consistent damping performance with improved heat dissipation over twin-tube shocks.

Ride height adjustable settings: Allows multiple front height positions to level the vehicle or accommodate added weight.

Digressive valving technology: Automatically adapts to changing road conditions for improved control and comfort.

Lift and leveling capability: Designed to support stock and lifted applications with proper damping characteristics.

Vehicle-specific Tacoma fitment: Engineered for Gen 4 Toyota Tacoma models to ensure proper installation and performance.

Bilstein B8 5100 Ride Height Adjustable Front Shock Absorber for the Gen 4 Toyota Tacoma is designed to give drivers more control over both ride quality and front-end stance by combining Bilstein’s monotube shock design with adjustable ride height settings. This allows you to fine-tune the front suspension to level the truck or to compensate for added weight from accessories such as bumpers or winches.

Using digressive valving, the shock automatically adjusts to changing road conditions, providing a balance of comfort and control whether you’re driving on pavement or off-road. The result is a more stable, responsive front-suspension setup that improves handling and overall performance, making it a strong upgrade for Tacoma owners seeking both adjustability and reliability.

Specifications:

Collapsed Length (in): 19.24

Extended Length (in): 24.13

Collapsed Length (mm): 488.8

Extended Length (mm): 612.8

Stroke/travel Length (in): 4.89

Lower Mount Type: Eye 16.3mm

Upper Mount Type: Stem

Internal Design: Monotube

Finish: Zinc Plated

Reservoir: No

Body Design: Snap Ring Grooved Body (Coilover)

Body Diameter (od): 2.0 in.

Piston Diameter: 46mm

Boot Included: No

Spring Seat Included: Yes

Shaft Diameter: 14mm

Adjustable Damping: Non-Adjustable

Installation NotesInstallation Difficulty:Level 2IntermediateInstallation Time:Less than an hourParts Included

• (1) Shock

Warranty Limited Lifetime Warranty.
