Description

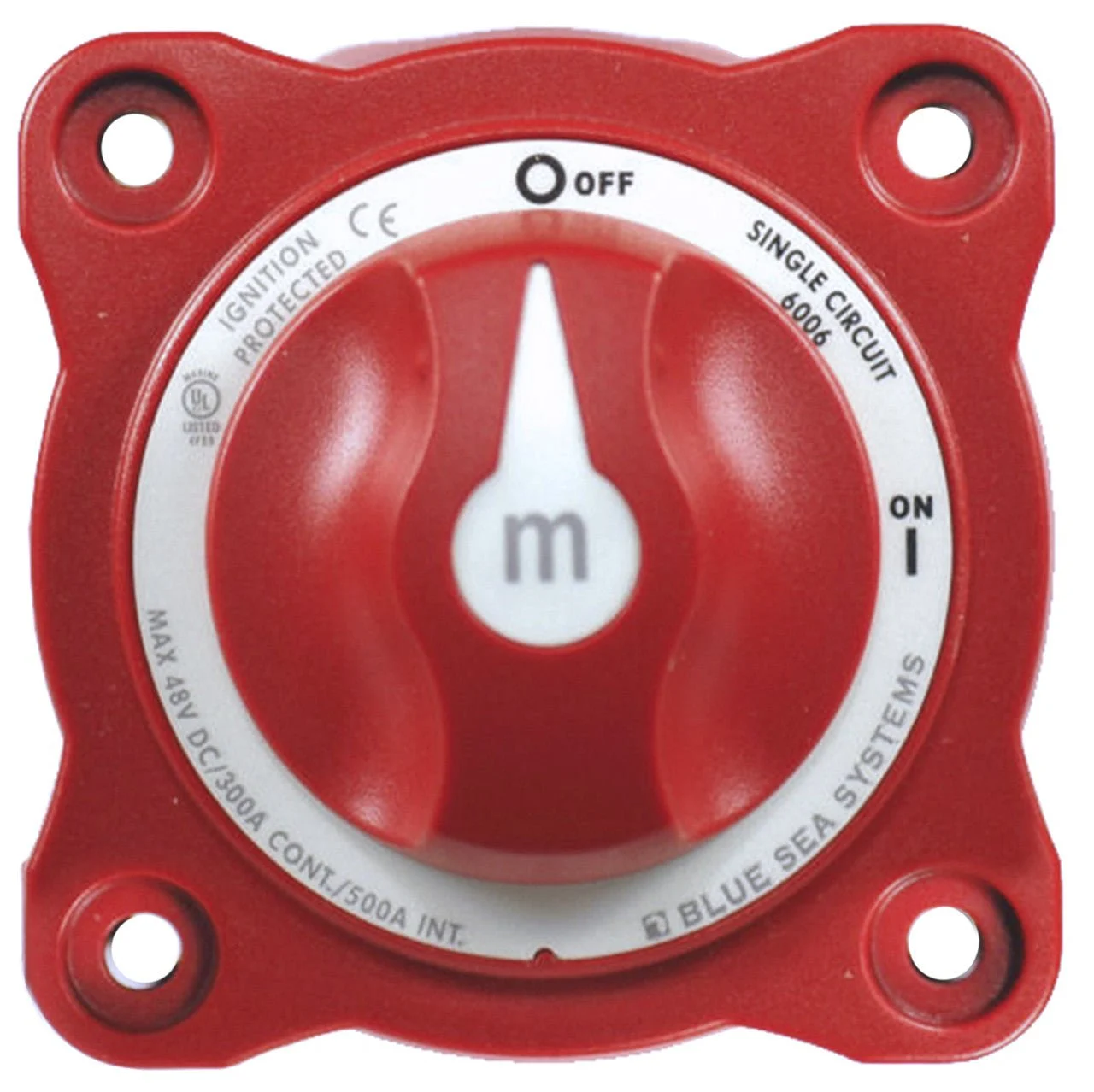

Blue Sea M-Series Red On-Off Battery Switch With Knob, Single Battery Operation.
Features:
Switches A Single Battery To A Single Load Group
Ignition Protected—Safe For Installation Aboard Gasoline Powered Boats
Case Design Allows Surface Or Rear Panel Mounting
Specs:
Switch Type – Single Circuit ON-OFF
Color – Red
Switch Positions – 2
Battery Combine – NO
Alternator Field Disconnect – NO
Maximum Voltage – 48V DC
Continuous Rating – 300 Amps
Intermittent Rating – 500 Amps 5 Minutes
Cranking Rating 30 Sec – 900Amps
Battery Inputs – 1
Cable Size To Meet Ratings – 4/0Awg
Mounting Holes – Accept #10 Screw
Terminal Stud Size – 3/8″ Ring Terminals
Weight – 0.65lb (0.29 kg)
Sold As Each
16-125 K-Four Switches
