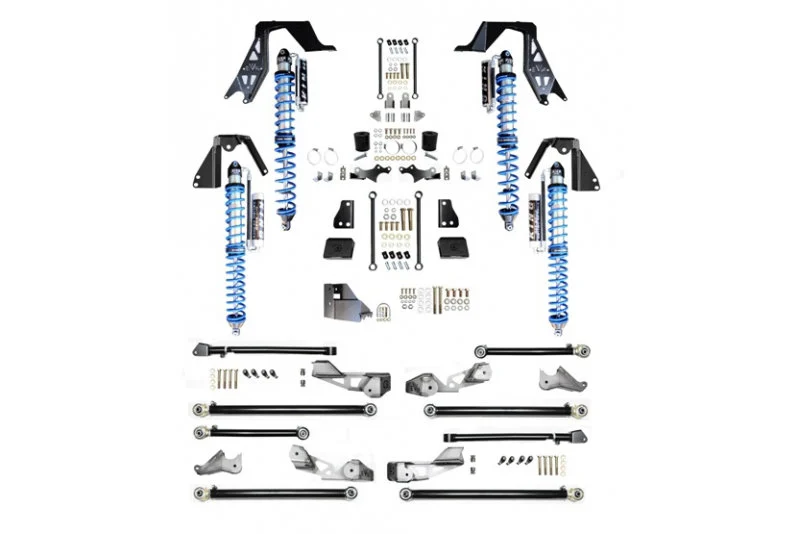

Now Wrangler JL Unlimited 4-door owners can combine JLU High Clearance Long Arm kit with the EVO MFG JL Front and Rear NV2514 Coilover kits. This EVO MFG High Clearance Long Arm kit has been specifically designed for the Wrangler JL Unlimited to allow for the ultimate in suspension an chassis clearance, larger wheel travel ability and increased ride quality by giving the optimal suspension geometry. With the aid of King Shock Technologies, EVO built a custom length specifically valved and tuned 2.5” Diameter long travel remote reservoir coilover to maximize travel and lift height. Most setups will require a backspacing of 3.75” or smaller. All components that are necessary for the transformation are included, such as brake line provisions, bump stop extensions, swaybar end links and hardware. All Bracketry is laser cut, CNC press brake formed and fixtured welded for great fitment. All of the EVO long arm joints feature Johnny Joints on both ends for the control arms for restriction free articulation. Some grinding and welding is required for the installation.
Long Arm Upgrade: All of the Long Arm Components are made from very strong 2.0 x .281″ wall Steel DOM tubing for high strength and optimal ride quality for the Wrangler JL 4 Door vehicle. Upgrade any short or mid arm lift kit to a Long arm kit which will give optimal off road clearance and suspension geometry.
Increased Performance: All of the included components are specifically designed for the Wrangler JL to increase chassis clearance, provide larger wheel travel, and improve the overall performance of the Jeep in any terrain.
Bolt-on NV2514 Coilovers: This Coilover system allows you to un-limit the kit and run full shock length yielding 14.5” front wheel travel and 14” rear wheel travel.
Installation NotesInstallation Difficulty:Level 4Experts OnlyInstallation Time:22-30 hoursParts Included
- Front Lower Long Arms
- Front Upper Long Arms
- Rear Lower Long Arms
- Rear Upper Long Arms
- Driver Front High Clearance Long Arm Mounting Bracket
- Passenger Front High Clearance Long Arm Mounting Bracket
- Driver Rear High Clearance Long Arm Mounting Bracket
- Pass Rear High Clearance Long Arm Mounting Bracket
- Driver Rear Lower High Clearance Axle Mount
- Pass Rear Lower High Clearance Axle Mount
- Hardware Kit
High clearance Long Arm Upgrade
Front Bolt-On Coilover Kit with Shocks:
- (1) Driver Side Shock Tower
- (1) Passenger Side Shock Tower
- (1) Passenger Side Lower Coilover Mount
- (1) Driver Side Lower Coilover Mount
- (2) Coilover Shock Reservoir Mounts
- (2) 3″ Bumpstop Spacers
- (4) Swaybar Bushing Tubes
- (4) Swaybar Bushings
- (2) Front Coilover Swaybar Links
- Installation Hardware
Rear Bolt-On Coilover Kit with Shocks:
- (1) Driver Side Rear Bolt On Coilover Mount
- (1) Passenger Side Rear Bolt On Coilover Mount
- (1) Driver Side Rockstar Skid
- (1) Passenger Side Rockstar Skid
- (1) Rear Trackbar Bracket
- (1) Brake Line Kit
- Installation Instructions
Warranty Limited Lifetime Warranty
