Description

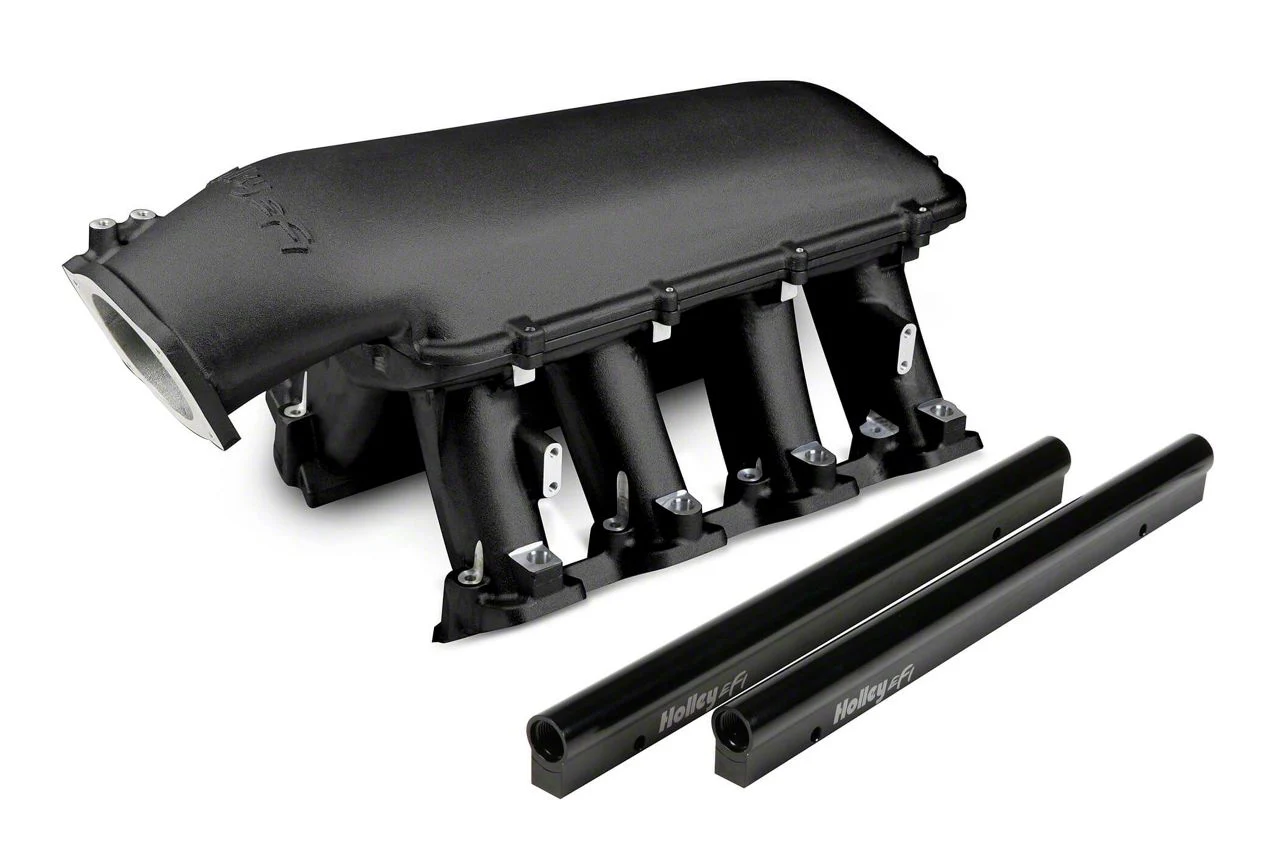

High-Performance Intake. The Holley GM LS3/L92 Modular EFI Hi-Ram Intake Manifold with 92mm LS Throttle Body Mount; Black is engineered to optimize airflow for naturally aspirated or forced induction engines in the 6.0 to 7.0+ liter range. Designed to deliver peak power at high RPMs (7000-8000+), it is an excellent choice for performance builds requiring enhanced induction efficiency and bold race-inspired styling.
Construction and Appearance. Constructed from durable cast aluminum, this intake features a black ceramic coating that provides a sleek, aggressive appearance while offering resistance to corrosion and heat. The design includes tapered runners and a longitudinal mount plenum top that enhance airflow dynamics and overall engine performance.
Installation. Installation is straightforward for experienced enthusiasts, requiring no drilling or modification to the engine block or head. The manifold is designed to bolt directly to LS3/L92 cylinder heads, making it suitable for OEM replacement or upgrade setups.
Warranty. This intake manifold comes with a manufacturer�s limited 90-day warranty covering defects in materials and workmanship.
Application. Specifically made to fit the 2008-2013 6.2L Corvette C6 engines, providing an ideal upgrade for those seeking increased performance and styling enhancements tailored to this application.
Holley 300-116BK
CA Residents: WARNING: Cancer and Reproductive Harm
- EFI Hi-Ram Intake For 1 X 92mm Gm LS3/L92 Throttle Body – Longitudinal Mount Plenum Top
- Black Ceramic Coating
- Legal For Racing Use Only Vehicles
- Cost-Effective Alternative To Fabricated Sheet-Metal For High-Performance Applications
- Designed For Engines Between 6.0 To 7.0+ Liters
- Max Power At 7000-8000+ RPM
- Cast Aluminum Construction
- Runner Length Of 6.50 Inches With Tapered Cross-Section
- Base Designed To Accept A Wide Range Of Carbureted And EFI Tops
- Standard EFI Fuel Rails Machined For -8AN O-Ring Fittings To Accommodate High Fuel Flow
- Throttle Body Flange Location: 8.42 Inches Height, 3.84 Inches Forward From Engine Block Front Flange At 25 Degree Angle
- Plenum Top Gasket Type Is 3/32 Inch Round O-Ring Cord
- Mounting Flange Gasket Is Standard LS3 Molded O-Ring
- Port Size: 2.49 Inches Height By 1.21 Inches Wide
- Removable Top/Lid
- Single Plane Design
- Vacuum Ports Included
- Includes Fuel Rails And Throttle Body Gasket
- Recommended For Forced Induction and Naturally Aspirated Engines
- Total Height With 92/102mm EFI Plenum Top Is 12.32 Inches To Lifter Valley Cover Flange
- Fits 08-13 6.2L Corvette C6
