MSD Digital 6AL Ignition Control (67-97 Camaro)

Description

Advanced Ignition Control. The MSD Digital 6AL Ignition Control delivers precise spark timing and rev limiting for improved engine performance. It uses a microprocessor to monitor and manage firing events, ensuring consistent ignition and preventing engine over-revving.

_x000D_

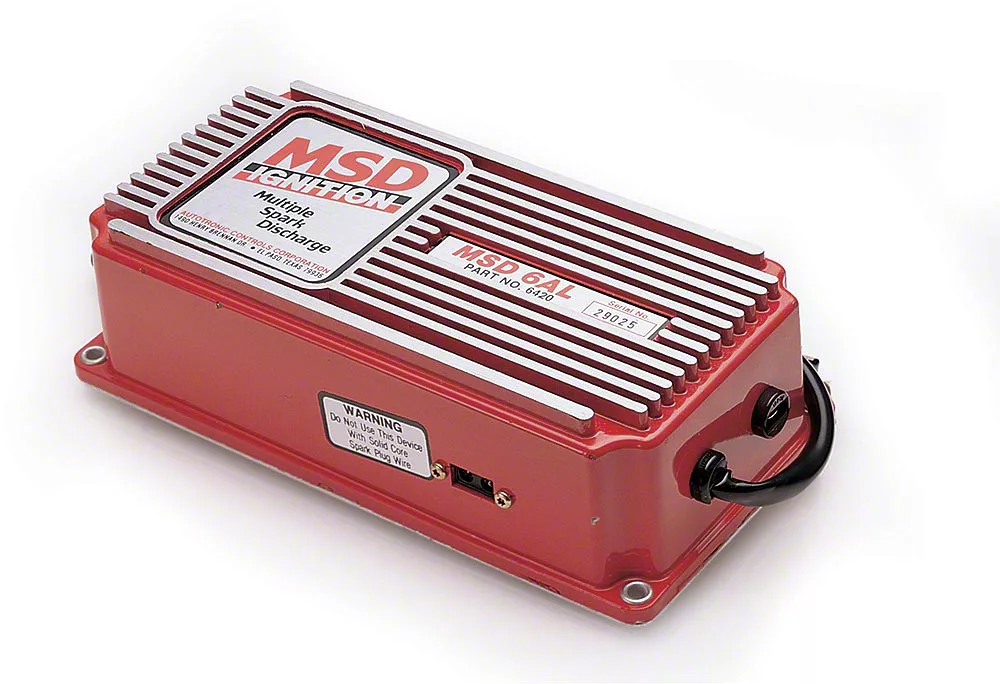

Construction and Appearance. This ignition control features durable components housed in a red surface-mount case. Wiring exits through a sealed, locking connector for a clean installation, while vibration mounts provide secure and stable placement under the hood.

_x000D_

Installation. Installation is straightforward with a supplied wiring harness and mounting hardware. Typically, no drilling is required, allowing a clean and efficient upgrade.

_x000D_

Warranty. This unit is backed by a limited 1-year manufacturer’s warranty for peace of mind.

_x000D_

Application. Designed to fit and perform on 67-97 Camaro models without modification.

CA Residents: WARNING: Cancer and Reproductive Harm

_x000D_
• Built-In Adjustable Rev-Limit Control

_x000D_

• Microprocessor Monitoring and Controlling Every Firing and Rev Limit

_x000D_

• Efficient Components Reduce Current Draw While Increasing Power Output

_x000D_

• Delivers Over 530 Volts to the Coil with Up to 135 mJ Spark Energy Per Firing

_x000D_

• Compatible with 4, 6, or 8-Cylinder Engines with 12-Volt Negative Ground Systems

_x000D_

• Accepts Trigger Inputs from Breaker Points, Amplifiers, and Magnetic Pickups

_x000D_

• Wiring Harness and Vibration Mounts Included

_x000D_

• All Wires Exit Through a Sealed and Locked Connector for Neat Installation

_x000D_

• Built-In LED for System Checks

_x000D_

• Rev-Limiter Located on Top with Two Rotary Dials Adjustable in 100 RPM Increments

_x000D_

• Voltage Required is 12-15 Volts, 7 Volt Start

_x000D_

• Current Draw Approximately 0.7 Amp per 1,000 RPM

_x000D_

• Surface Mount Design with Mounting Hardware Included

_x000D_

• Maximum RPM Capacity of 11,000

_x000D_

• Primary Voltage Range Between 520-540

_x000D_

• Secondary Voltage Up to 45,000

_x000D_

• Spark Energy Between 135-145 Millijoules Per Spark

_x000D_

• Weight is 1.7 Pounds with Dimensions of 8 Inches Length, 4 Inches Width, and 1.825 Inches Height

_x000D_

• Includes a Manufacturer’s Limited 1-Year Warranty

_x000D_

• Fits 67-97 Camaro

_x000D_
