Putco Luminix Edge Light Bar

Description

DescriptionPutco’s High Power Luminix EDGE Series LED Light Bars deliver high-quality, universal bright lighting in a housing that is 300% smaller than other light bars on the market. Putco’s Light Bars are constructed of black anodized 6061 billet aluminum and focus lenses that concentrate the light beam path. The miniaturized size of this bar makes it ideal for a lower profile light bar. All Putco bars are IP69K rated for dust and moisture protection and boast 50,000 hours of LED bulb life!! Full wiring harness with Deutsche connectors, adjustable mounting brackets, and stainless steel hardware is included.

Features:

• 12 Volt LED Light Bar
• Thinnest Light Bar In The World
• Billet 6000 Series Aluminum
• UV Protected Black Anodized Finish
• 400 Lumens Per LED
• 6000K Color Temperature

Light Bar Options and Specifications:

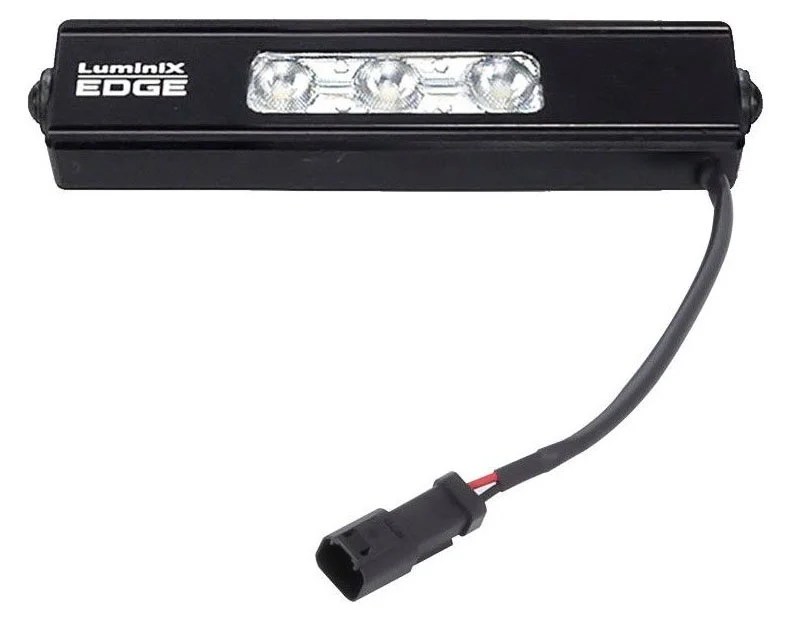

11006: Luminix EDGE High Power LED – 6″ Straight Light Bar – 3 LED – 1,200LM – 5x.75×1.5 – Inches.

11010: Luminix EDGE High Power LED – 10″ Straight Light Bar – 9 LED – 3,600LM – 11.64x.75×1.5 – Inches.

11020: Luminix EDGE High Power LED – 20″ Straight Light Bar – 18 LED – 7,200LM – 21.63x.75×1.5 – Inches.

11030: Luminix EDGE High Power LED – 30″ Straight Light Bar – 27 LED – 10,800LM – 31.63x.75×1.5 – Inches.

11033: Luminix EDGE High Power LED – 30″ Curved Light Bar – 27 LED – 10,800LM – 31.63x.75×1.5 – Inches – 6 Degrees.

11040: Luminix EDGE High Power LED – 40″ Straight Light Bar – 39 LED – 15,600LM – 41.63x.75×1.5 – Inches.

11046: Luminix EDGE High Power LED – 40″ Curved Light Bar – 39 LED – 15,600LM – 41.63x.75×1.5 – Inches – 6 degrees.

Installation NotesInstallation Difficulty:Level 2IntermediateInstallation Time:1-2 hours Installation
Instructions Parts Included

• Luminix EDGE Series Light Bar
• Wiring Harness

Warranty Limited Lifetime Warranty
