Severe Duty Universal Wiring System (Universal; Some Adaptation May Be Required)

Description

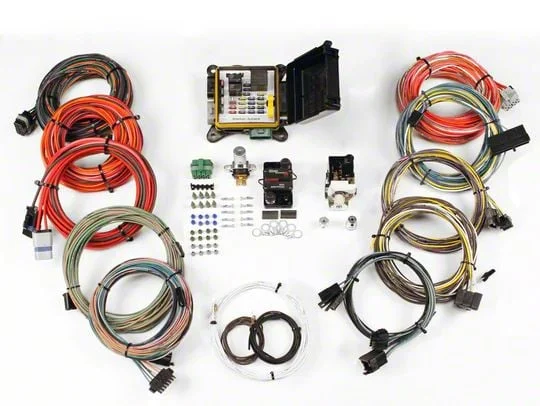

Advanced Wiring Solution. The Severe Duty Universal Wiring System is a comprehensive electrical wiring kit engineered to meet the demands of harsh and rugged environments. It provides a complete vehicle wiring solution that integrates key electrical components, ensuring reliable performance and ease of use for automotive applications. This system is ideal for those needing a durable, all-in-one wiring harness for custom or restoration projects.

Construction and Appearance. The system features fully sealed components including the 22 circuit fuse box, connectors, and a high-quality 200 amp manually resettable circuit breaker. Wires are made from heat-resistant GXL material with clear function prints every 2 inches, simplifying installation and diagnostics. The overall finish prioritizes durability and protection against environmental elements with robust weatherproof seals and rugged wiring.

Installation. Installation requires moderate skill with pre-terminated connectors to reduce complexity and installation time. While extensive drilling is generally not necessary, some adaptation or minor modifications may be required depending on individual vehicle configurations.

Application. Designed as a universal wiring system, this kit fits a wide range of vehicle applications but may require some adaptation to accommodate specific setups or custom builds.

CA Residents: WARNING: Cancer and Reproductive Harm

• Powerful Weatherproof Electrical System Designed for Rugged Environments
• Fully Sealed 22 Circuit Fuse Box with Proprietary Circuitry Rated at 200 Amps
• Includes 8 Optional Accessory Circuits
• Electronic Flasher Compatible with LED Turn Signals
• 200 Amp Sealed Manually Resettable Circuit Breaker for System Protection and Power Shut-Off
• Main Harness Pre-Terminated at One End with Fully Sealed Connectors
• Over 200 Inches of Heat Resistant GXL Wire with Primary Functions Printed Every 2 Inches
• Power Harness Pre-Terminated at One End with Fully Sealed Connectors; Over 100 Inches of Heat Resistant GXL Wire
• Accessory Kit with Sealed Connector, Seals, Terminals, and 4 Lengths of Wire from 18 to 12 Gauge in Various Colors
• Instrument Cluster Wiring with Cluster Harness Disconnect for Easy Service and Assembly
• Compatible with Popular Aftermarket Gauges Including Dakota Digital, Classic Instruments, Autometer, and VDO
• Subkits Included for Turn Signals, Headlights, Tail Lights, Parking Lights, Brake Lights, Gauges, Third Brake Light, License Plate Light, Engine Functions, and Sensors
• Subkits Pre-Terminated at One End with Long Lengths of Heat Resistant GXL Wire with Function Labels Every 2 Inches
• Includes 30 Amp Headlight Switch and Dimmer Switch with Pre-Terminated Connections
• Engine Wiring Includes Feeds for Coil, Tach, Water Temperature, Oil Pressure, Electric Choke, Transfer Case Warning Lamp, Under Hood Lamp, Transmission Kickdown, and Electric Speedometer
• Front Lighting Wiring Includes Extra Long Leads for Headlight, Parking Light, Directional Light, Side Marker Light, and Horn
• Fits Universal; Some Adaptation May Be Required
