Description

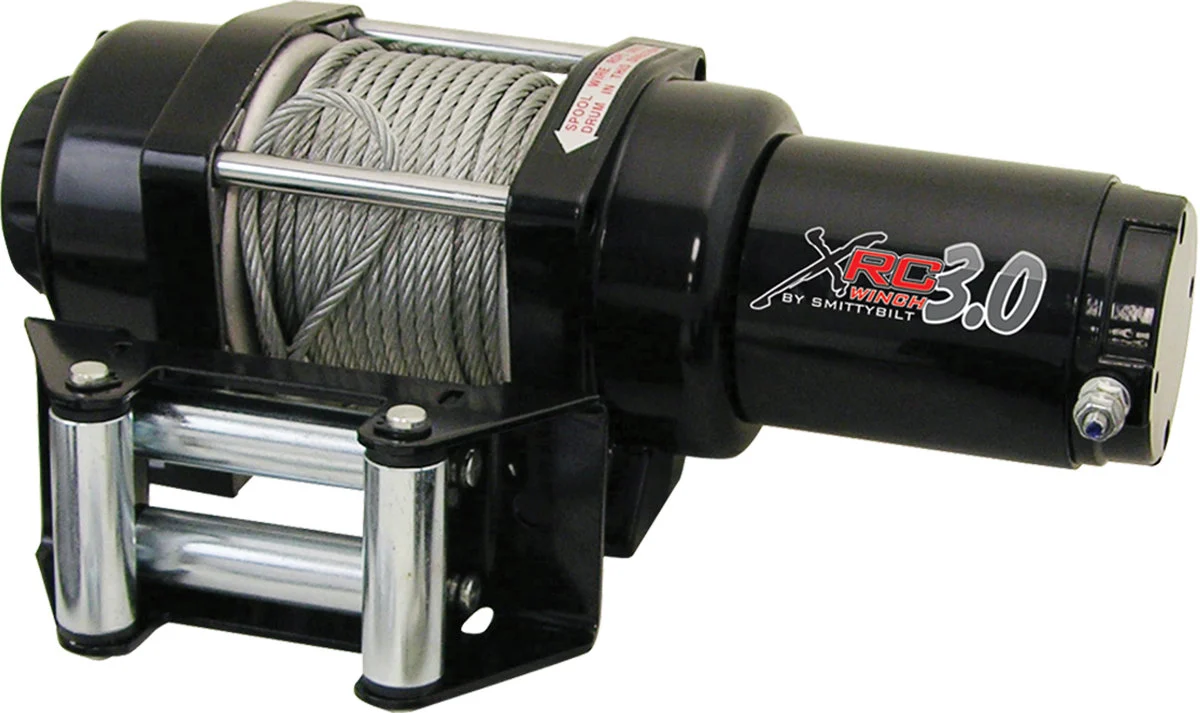

DescriptionThe most powerful 3,000 lb winch on the planet today! It has the biggest motor, the fastest line speed and comes standard with more features and accessories than most winches in its class. Its a solid state-of-the-art machine that flat out hustles the competition. We start with a 3.9 Horse Power Motor and equip it with a three-stage planetary gear system with a 136:1 gear ratio that delivers lightning fast line speed under load or not. This little powerhouse comes complete with handlebar rocker switch plus an 11′ remote control, high-performance solenoid & wire loom, 4-way roll fairlead, and a universal mounting plate. When you’re looking for performance, state of artwork components and quality, look to Smittybilt for a premium product and an economical price.
NOTE: Not for use on Jeeps. This is designed for ATV and utility purposes!
- Rated Line Pull: 3000LBS
- Winch Motor: 3.9hp Permanent Magnetic Motor
- Control: Remote Switch, 11.5′ lead
- Gear train: 3-Stage Planetary
- Gear Reduction Ratio: 136:1
- Braking Action: Automatic in drum
- Drum Size: 1.97″ (50mm); L 2.95″ (75mm)
- Cable Dia: 5.5mm x 10m
- Fairlead: 4-Way Roller Fairlead
- Remote Control: Included
- Battery: 175CCA min. for winching
- Battery Leads: 6mm2 x 1.8m
- Finish: Black
- Weight: 17 lbs
- Overall Dimensions: (LxWxH) 336mm x 114mm x 76.5mm
- Mounting Bolt Pattern: .4.9″ x 3.0″
Installation NotesInstallation Difficulty:Level 2IntermediateNot for use on Jeeps! Designed to be used on ATV’s and for utility purposes.Installation Time:0-2 hours Installation
Instructions Parts Included
Winch
Roller Fairlead
Handle Bar Remote
Wired Remote
Winch Cable with Hook
Winch Mounting Plate
Warranty Limited Lifetime Warranyt on Mechanical.
1 Year Limited Warranty on Electrical.
