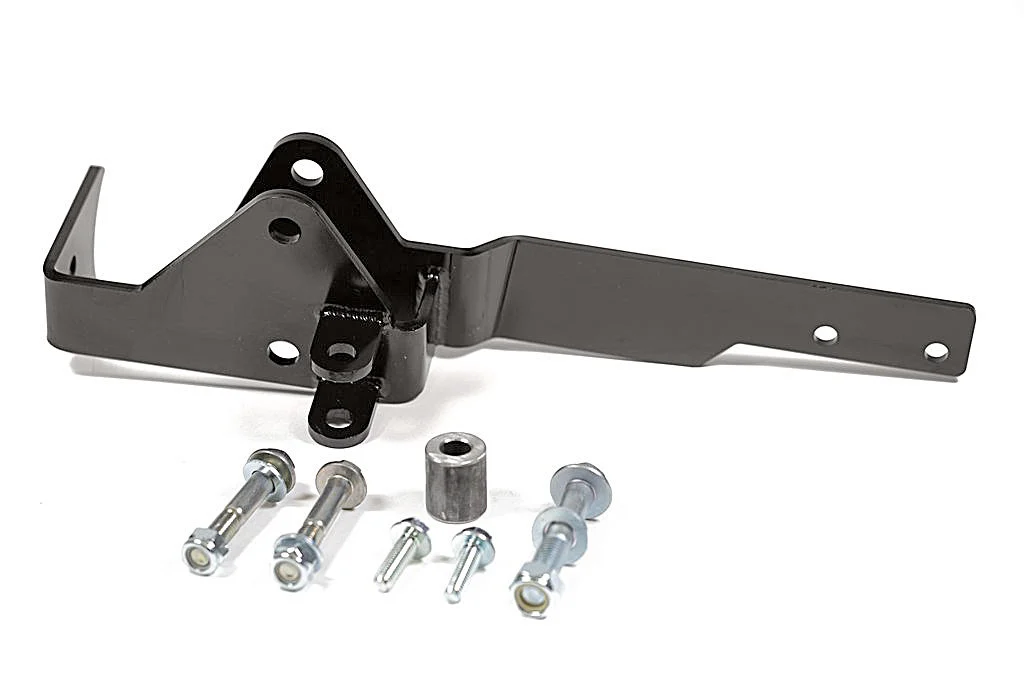

The Steer Smarts YETI XD Front Track Bar Relocation Bracket is engineered for proper track bar geometry on the Jeep Wrangler JL. Designed specifically for the Steer Smarts top-mounted draglink. Made from 1/4″ steel allowing it to take a beating and make it through that treacherous bolder field. Having components that are engineered for performance will give you the best driving experience.
Made in USA.
Fitment:
- Left Hand Drive applications only
- Required Lift Height – 3″ or greater
- Bump Stop Requirement – Minimal 2.75″
Premium Features:
- Proper Track Bar geometry for JL equipped with a Top Mount Draglink
- High clearance design to eliminate potential interference
- Made from 1/4” Steel for ultimate impact strength
- E-coated and finished with a premium powdercoat
- Simple bolt on installation to original mounting points
- Made in The USA
Torque Specifications:
- U-Bolt – 25 to 30 ft lbs
- M10 Bolt – 40 to 50 ft lbs
- M12 Bolt – 85 to 95 ft lbs
- M14 Bolt – 125 to 135 ft lbs
Installation NotesInstallation Difficulty:Level 2IntermediateInstallation Time:1-2 hours Installation
Instructions Parts Included
- Track Bar Bracket
- Installation Hardware
Warranty Limited Lifetime Warranty
