Description
DescriptionThe TeraFlex Base 4” Lift Kit w/ 9550 VSS Shock Absorbers for the Jeep Wrangler JK 2-door is the Optimum kit that is engineered to incorporate the basic fulfillment of the parts needed to lift your JK 2 door Wrangler and get your Jeep capable of experiencing the off Road excitement of overcoming those larger obstacles, or to surmount the most challenging trails and extreme All Terrain circumstances. This lift kit will provide you with improved ground clearance, more room in the wheel wells for larger tires and that Off-Road rugged Stance that old and new Jeep enthusiast desire from a suspension system.
Many states have laws that limit the maximum height of a lifted vehicle. Never exceed the legal height limit.
- Max Tire Diameter 37″
- Requires aftermarket wheels w/ 4.5” backspacing or less – or Offset Wheel Adapters for stock wheels.
- 2012-2018 JK models require Exhaust Spacers or other exhaust modification for proper driveshaft clearance.
- Driveshaft modifications are highly recommended with this suspension system. See the TeraFlex Rzeppa High Angle CV Kit.
- Requires 2.5-4” Adjustable Alpine Flexarms or 3-6” Adjustable Alpine Long Flexarms and HD Forged Adjustable Front Track Bar to set correct suspension geometry including caster angle, pinion angle, roll center, & load tuning during re-alignment after installation. Proper suspension geometry ensures all stability controls function within factory parameters.
JK 2-Door Base 4” Lift Kit w/ 9550 VSS Shocks
Notes:
Installation NotesInstallation Difficulty:Level 2IntermediateInstallation Time:5-7 hours4″ Suspension Lift Installation
Instructions Bump Stops Installation

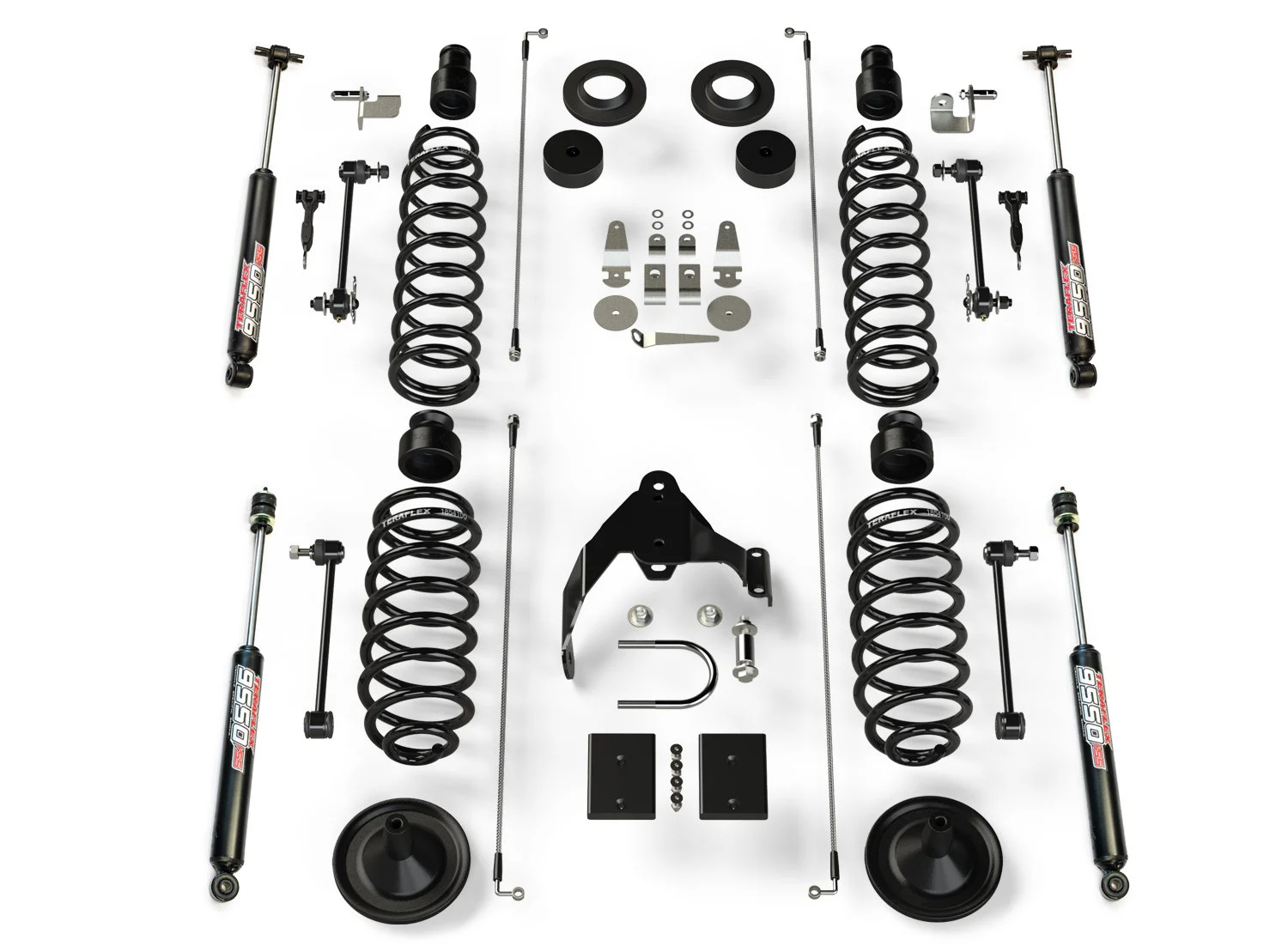

Instructions Parts Included
- Front Coil Spring Pair
- Rear Coil Spring Pair
- Bump Stops
- Front & rear brake lines
- Front Brake Line Anchor Kit
- Front Sway Bar Disconnects
- Rear Track Bar Bracket
- Rear Sway Bar Links
- 4 TeraFlex 9550 VSS Shocks
- Installation Hardware
Warranty Limited Lifetime Warranty
