Description

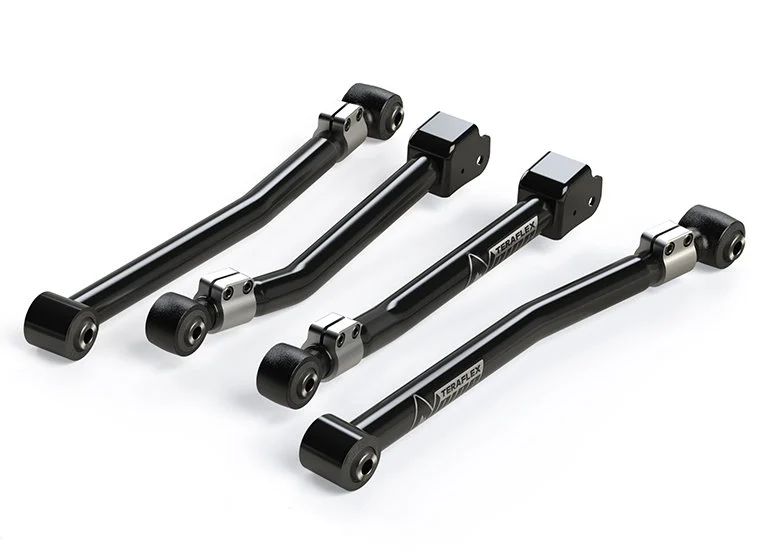

DescriptionTeraflex Alpine Front Adjustable Long Arms are designed to give your Jeep Wrangler JK the ultimate off-road articulation and ride comfort. These Fully-adjustable Alpine Flexarm control arms give precise and commanding driving position with attention to pinion & caster angles. The heavy-duty Control arms will correct sag and sway for a proper suspension alignment. They require zero maintenance and are easy to install. Teraflex Flexarms are sold as a set of (4) and carry a limited lifetime warranty.
- Tube Diameter & Wall = 1-5/8” x 0.157” (42mm x 4mm)
- Factory Length = 22-5/8”
- Min. Length = 22-3/4”
- Max. Length = 24”
- Both Ends = 9/16” (14mm) Bolt
- Thread = 1-1/4”-12 UNF
- Both Bushings = # 611011
- Tube Diameter & Wall: 1-5/8” X 0.157” (42mm X 4mm)
- Factory Length = 18-3/4”
- Min. Length = 27-3/8”
- Max. Length = 28-7/8”
- Axle End = 7/16” (12mm) Bolt
- Frame End = 9/16” (14mm) Bolt
- Thread = 1-1/4”-12 UNF
- Axle Bushing = # 611014
Lower Flex Arm Specs:
Upper Flex Arm Specs:
Durable: 1-5/8” x 0.157” (42mm x 4mm) wall DOM (Drawn Over Mandrel) tube provides maximum strength.
Fully-Adjustable: Alpine Flexarm control arms optimize pinion & caster angles, & tune anti-squat geometry for proper suspension alignment. Re-centers axles in the wheel well for proper suspension movement or can be used to increase wheelbase.
High-Quality Components: High-quality factory style bushings provide excellent noise, vibration, & harshness (NVH) damping & ride quality characteristics w/ zero maintenance. Premium black e-dipped coating provides superior durability & corrosion resistance on tube & forged rod end housing. Zero maintenance forged threaded joints equate for a smooth quiet flex.
Installation NotesInstallation Difficulty:Level 3AdvancedSubframe not included.Installation Time:3-5 hours Installation
Instructions Parts Included
- 2 Front Upper Control Arms
- 2 Front Lower Control Arms
- Bushings
Warranty Limited Lifetime Warranty
