Description

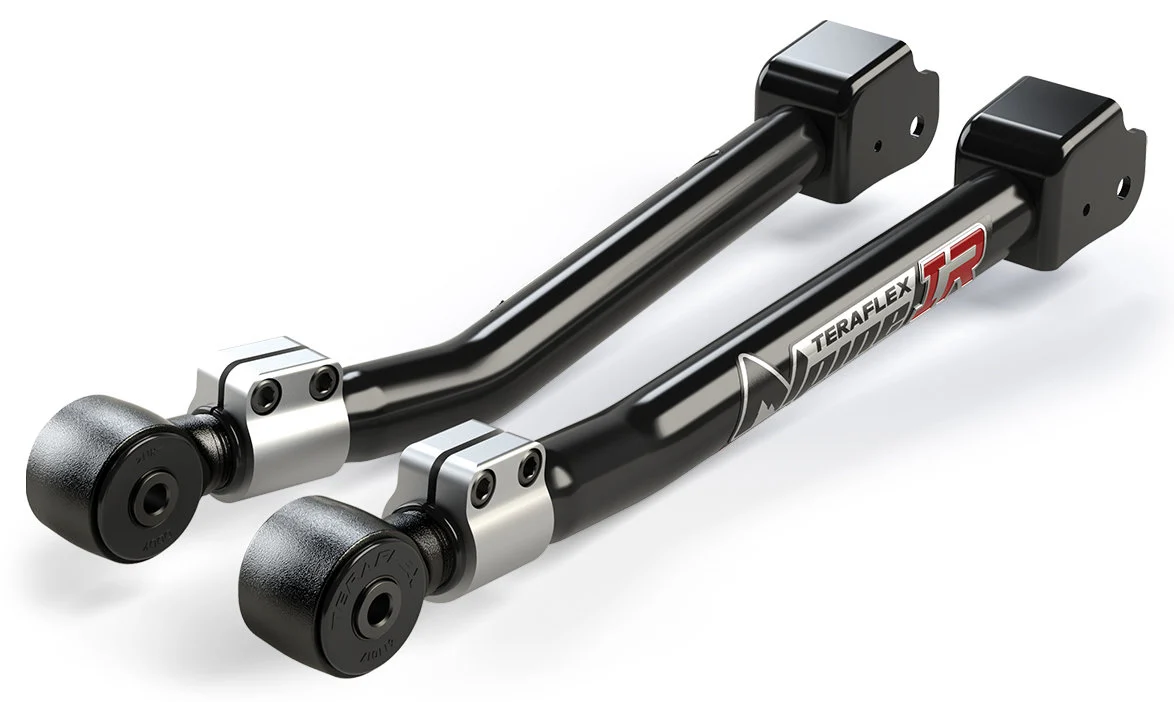

DescriptionThe Teraflex Alpine IR Adjustable Control Arm Kit gives you the ability to adjust the alignment in your Jeep Wrangler JL with a lift up to 4.5″. Alpine IR Bushings fix the dilemma of choosing between the smooth ride of factory style rubber bushings and the full articulation of nylon bushings. Using an inner sleeve to allow easy rotation without adding any binding stress to the zero maintenance rubber bushings, these bushings combine the comfort, articulation, and durability all in one.
Premium Finish: Black e-dipped coating provides superior durability and corrosion resistance. Anodized 6061-T6 aluminum clamp collar.
Adjustable Length: Optimize caster angle and tune anti-squat geometry for proper suspension alignment. Re-centers axles in the wheel well for proper suspension movement.
IR Bushings: Independent Rotation. Unrestricted rotation and flex as well as excellent NVH damping and ride quality characteristics. The full range of movement will not restrict articulation or flex off-road.
Front Upper Control Arms
- Factory Length = 20-3/16″
- Min. Length = 20″
- Max. Length = 21″
Front Lower Control Arms
- Factory Length: 24″
- Min. Length: 24″
- Max. Length: 25-1/4″
Rear Upper Control Arms
- Factory Length = 17-7/16″
- Min. Length = 17-3/8″
- Max. Length = 18-1/2″
Rear Lower Control Arms
- Factory Length = 19-3/4″
- Min. Length = 19-13/16″
- Max. Length = 21-1/16″
Installation NotesInstallation Difficulty:Level 2IntermediateMatch factory length when installing. Alignment required to adjust the length.Installation Time:3-4 hours Installation
Instructions Parts Included
- Control Arm Pair
or
- Full Set of 8 Control Arms(If Selected)
Warranty Limited Lifetime Warranty
