DescriptionChanging the mounting location to accommodate longer control arms in your Jeep Wrangler JL allows for better suspension geometry and more adjustability. Installing the Teraflex Alpine Long Control Arm & Bracket Kit in addition to any 3-6″ lift will give you the freedom to re-center the axles within the wheel wells and adjust the caster to achieve the smoothest ride possible. While no welding is needed for this kit, some cutting is required to remove or trim the factory control arm brackets in order to clear the longer control arms.
Premium Finish: Black e-dipped coating and anodized 6061-T6 aluminum clamp collars provide superior durability and corrosion resistance.
Adjustable Length: Optimize caster angle and tune anti-squat geometry to re-center axles in the wheel well for proper suspension movement.
Factory Style Bushings: For the most comfortable ride quality and reliability with the option to replace them if they ever wear out.
Front Upper Long Control Arms:
- Factory Length = 20-3/16”
- Min. Length = 27-3/8”
- Max. Length = 28-7/8”
Front Lower Long Control Arms:
- Factory Length = 24”
- Min. Length = 33-3/4”
- Max. Length = 35-1/4”
Rear Upper Long Control Arms:
- Factory Length = 17-7/16”
- Min. Length = 20”
- Max. Length = 21-1/2”
Rear Lower Long Control Arms:
- Factory Length = 19-3/4”
- Min. Length = 35-3/4”
- Max. Length = 37-1/4”
Installation NotesInstallation Difficulty:Level 3AdvancedCutting factory control arm brackets is required for installation.Installation Time:8-10 hoursInstallation Instructions Installation
Instructions Cutout Template Installation

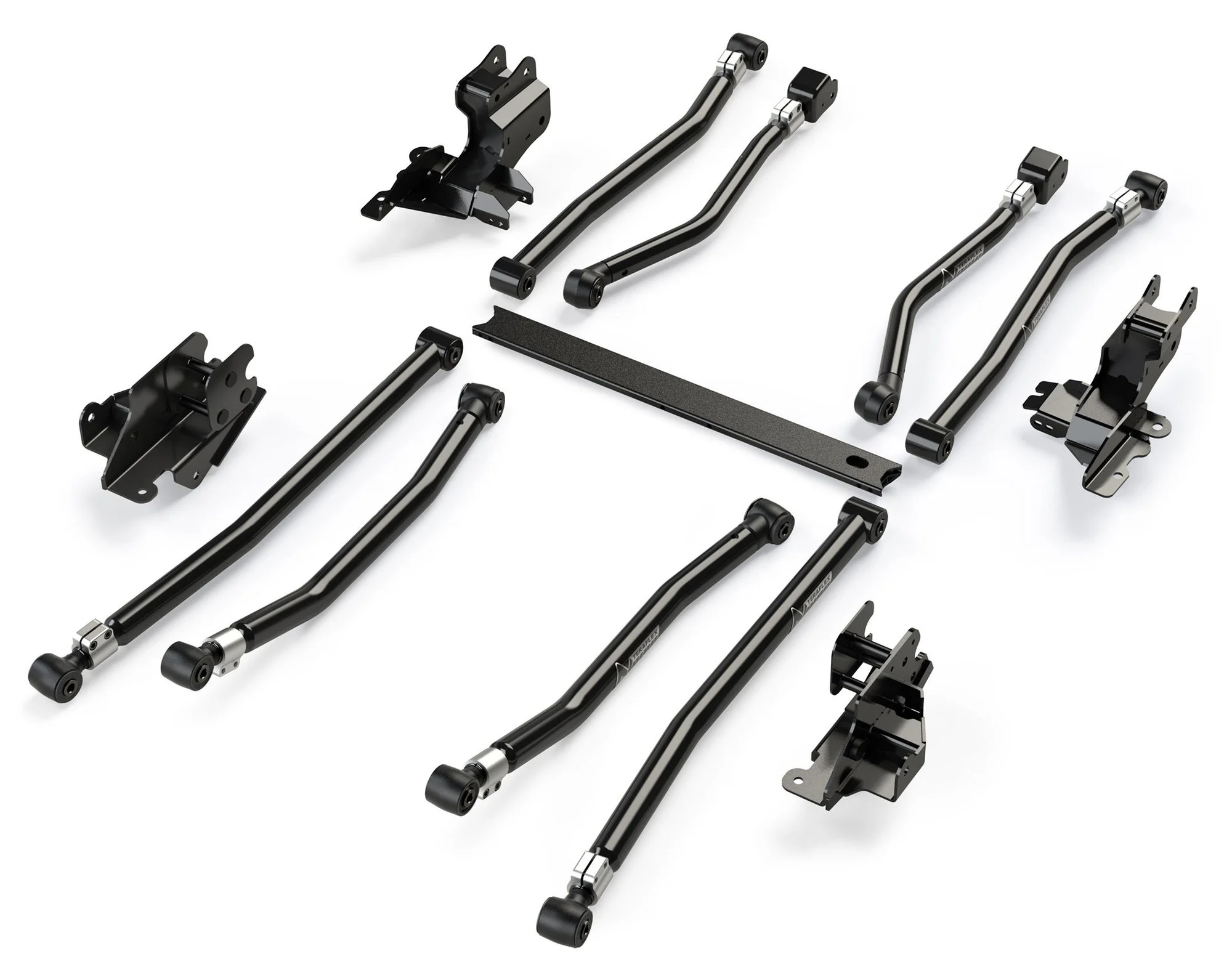

Instructions Parts Included
- Front Upper Control Arm Pair
- Front Lower Control Arm Pair
- Rear Upper Control Arm Pair
- Rear Lower Control Arm Pair
- Front Bracket Pair
- Rear Bracket Pair
- Cross Member
- Hardware
Warranty Lifetime Warranty
