Description
DescriptionBy ordering a single part number, you can take all of the guess-work out of getting all of the parts you’ll need to install one of the most sophisticated, all-inclusive onboard air systems available today. The Medium Duty Onboard Air System comes complete with a dependable, low amp draw 325C, 33% Duty Cycle compressor at its heart that will fill the supplied 2.5 gallon tank from 110-150 PSI in approximately one minute. Included is everything you’ll need to add a reliable single air source to your vehicle.
(For vehicles with up to 33-inch tires)
325C Tire Inflation Rates |
|
| Begin/End PSI | 31″ X 10.5″ |
| 0 To 30 PSI | 4 Min. 58 Sec. |
| 15 To 30 PSI | 2 Min. 45 Sec. |
| Begin/End PSI | 33″ X 12.5″ |
| 0 To 30 PSI | 7 Min. 15 Sec. |
| 15 To 30 PSI | 3 Min. 55 Sec. |
| Begin/End PSI | 35″ X 12.5″ |
| 0 To 30 PSI | 8 Min. 50 Sec. |
| 15 To 30 PSI | 4 Min. 50 Sec. |
Installation NotesInstallation Difficulty:Level 3AdvancedInstallation Time:4-6 hours Installation

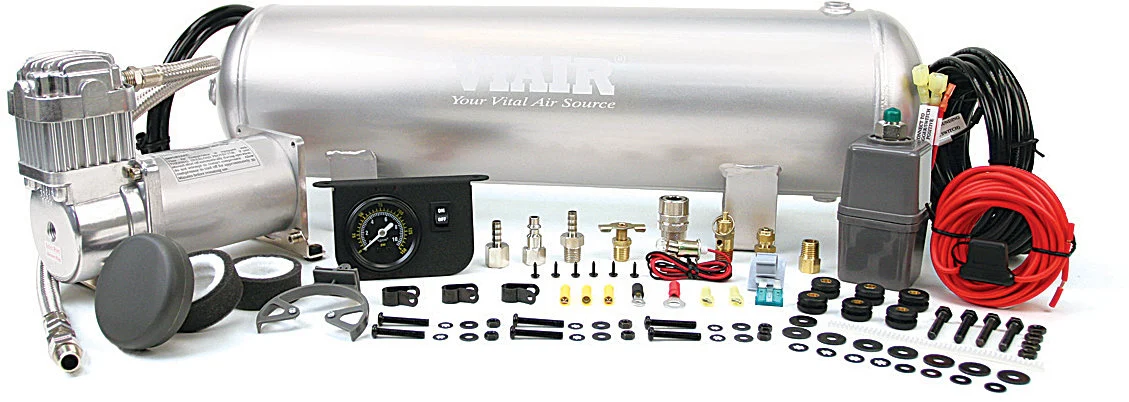

Instructions Parts Included
(1) 2.5 Gallon Viair Air Tank
(1) 325C model Viair Air Compressor
(1) 1/4″ NPT Quick Connect Coupler
(1) Dash Panel Gauge with ON/OFF Switch
(1) Pressure Switch with Relay
(1) 1/8″ NPT to 1/4″ NPT Reducer
(1) 1/4″ NPT 175 PSI Safety Valve
(1) 1/4″ Drain Cock
(1) 1/4″ NPT Compression Fittings
(1) 4-inch Strip of Continuous Grommet Material
(1) 20ft. 12 Gauge Wire with Inline Fuse Holder
Warranty 1 Year Limited Warranty.
