Description
DescriptionBy ordering a single part number, you can take all of the guess-work out of getting all of the parts you’ll need to install one of the most sophisticated, all-inclusive onboard air systems available today. The Heavy Duty Onboard Air System comes complete with a super fast 400C, 33% Duty Cycle compressor at its heart that will fill the supplied 2.5 gallon tank from 110-150 PSI in approximately 45 seconds. Included is everything you’ll need to add a reliable air source to your vehicle as well as inflate tires with the included clip-on air chuck.
(For vehicles with up to 35-inch tires)
400C Tire Inflation Rates |
|
| Begin/End PSI | 31″ X 10.5″ |
| 0 To 30 PSI | 2 Min. 28 Sec. |
| 15 To 30 PSI | 1 Min. 25 Sec. |
| Begin/End PSI | 33″ X 12.5″ |
| 0 To 30 PSI | 4 Min. 00 Sec. |
| 15 To 30 PSI | 2 Min. 00 Sec. |
| Begin/End PSI | 35″ X 12.5″ |
| 0 To 30 PSI | 4 Min. 50 Sec. |
| 15 To 30 PSI | 2 Min. 20 Sec. |

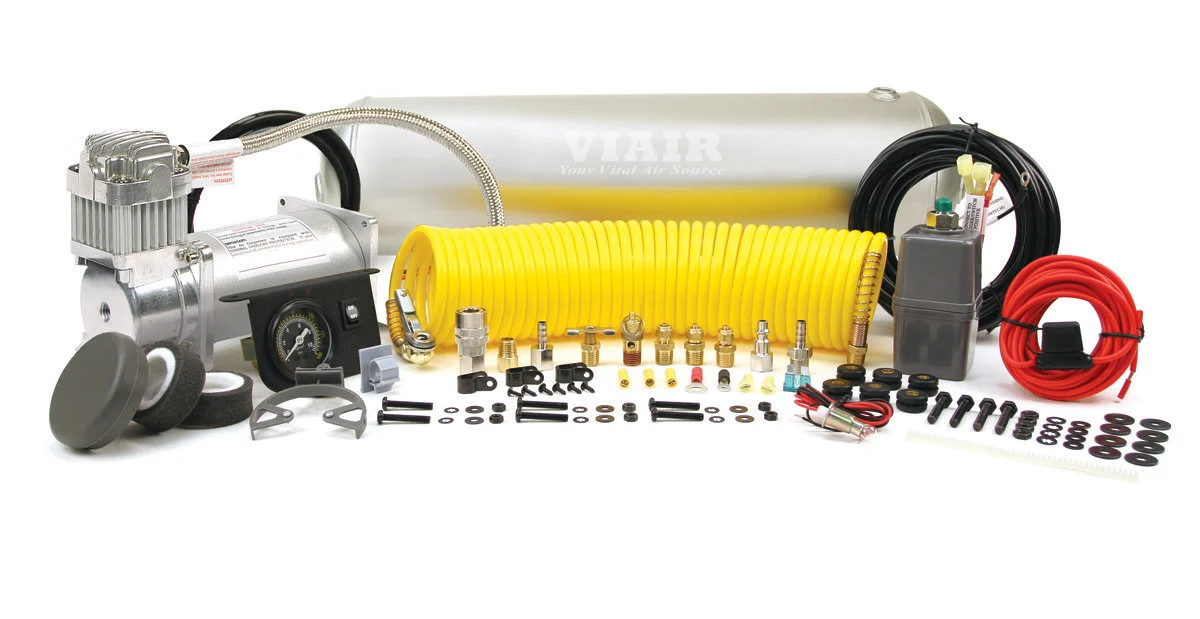

Parts Included
(1) 2.5 Gallon Viair Air Tank
(1) 400C model Viair Air Compressor
(1) 35ft. Coil Hose
(1) 1/4″ Quick Connect Stud (F)
(1) 1/4″ NPT Quick Connect Coupler (F)
(1) Dash Panel Gauge with ON/OFF Switch
(1) Pressure Switch with Relay (110 PSI on, 150 PSI off)
(1) Reducer (1/8″ NPT F to 1/4″ NPT M)
(1) 1/4″ NPT 175 PSI Safety Valve
(1) 1/4″ Drain Cock
(3) 1/4″ NPT Compression Fittings
(1) 4-inch Strip of Continuous Grommet Material
(1) 20ft. 12 Gauge Wire with Inline Fuse Holder
Warranty 1 Year Limited Warranty.
