Description

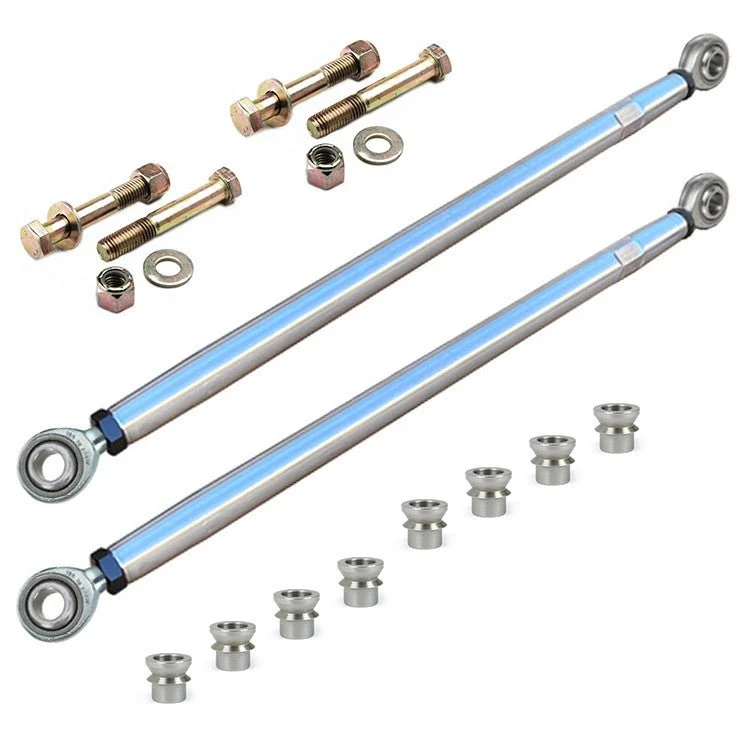

Vw Bug Heavy Duty Aluminum Tie Rods With Heim Joint Ends. For 6″ Wider Axle Beams. Includes FK Heim Joints, High Misalignment Spacers And Hardware For Assembly To Spindles And Rack.
r
Heim Joint Specs:
FK Chromoly Heim Joint Male Rod Ends Teflon Lined, 3/4 Ball Hole X 3/4-16 Threads. Includes Jam Nuts
Static Radial Load: 28,090
r
Tie Rod Specs:
Aluminum Machine Finish
Length 24″
Diameter 1-1/4″
Tapped 3/4-16″ Left & Right Hand Threads
Overall Min Length With Ends 27-1/2″
Overall Max Length With Ends 29-1/2″
r
Note: Tie Rod Measurement Are With Ends Installed And Are Measured From “Post To Post”. Aluminum Tie Rod Can Be Trimmed A Maximum 1/2″ On Each End To Make Shorter If Needed.
r
Sold As Pair
