Description
Vw Bug Oil Pump, Oil Filter, Oil Cooler Kit With Electric Fan. This Filter Flow Hi Volume Oil Pump Is For Dished Cam Volkswagen Engines. 32mm High Volume Oil Pump With Inlet/Outlet On The Same Side Combined With A Competition Mesa Tru Cool 72 Plate Oil Cooler Kit With Electric Fan And Fram HP1 Spin On Oil Filter. Does Not Require Any Machining To The Engine Case.

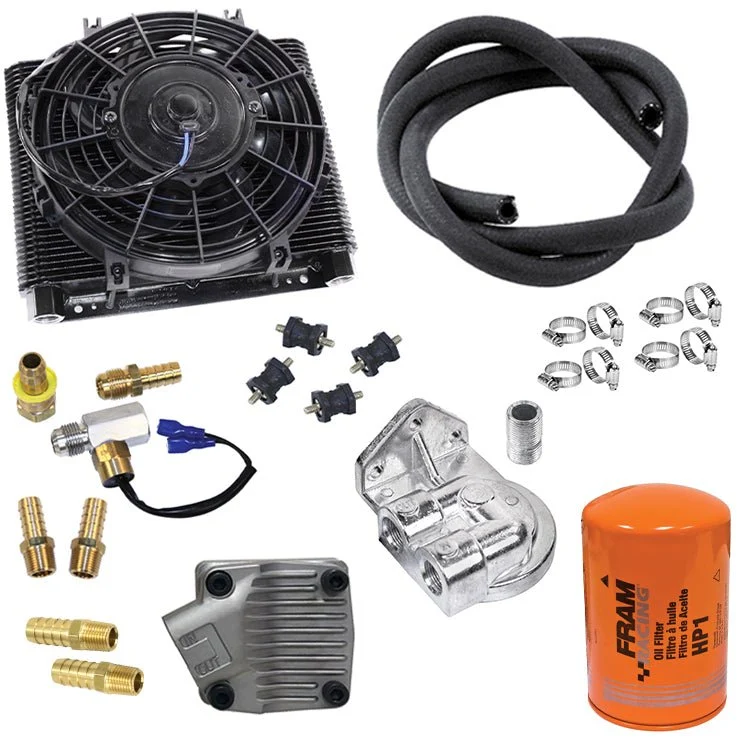

Includes:
Empi 16-9713 Filter Flow Oil Pump
72 Plate Oil Cooler, 12 Volt Electric Fan
Empi 33-5721 Electronic Fan Thermostat For Worry Free Operation
Qty 2 Straight Brass Fittings, Male 1/4″ NPT X 1/2″ Barbed
Qty 2 Straight Brass Fittings, Male 3/8″ NPT X 1/2″ Barbed
Qty 2 Straight Brass Fittings, Male 1/2″ NPT X 1/2″ Barbed
Set Of 4 Oil Cooler Rubber Damper Mounting Kit
10 Feet Of High Pressure Oil Hose
Spin On Oil Filter Adapter Mount
Fram HP1 Oil Filter
Qty 8 Hose Clamps #6
Overall Size With Fan: Length – 10″ X Width -11″ X Height – 4 1/2″
72 Plate Cooler Size: Length – 10″ X Width -11″ X Height – 1 5/8″
Inlet / Outlet: 1/2″ NPT
Note: It Is Important To Use Anti-Seize Lubricant And Not Over Tighten When Installing Any Fittings Into The Mesa Oil Cooler. It Is Very Important To Secure Oil Cooler Fitting With 1″ Wrench When Gently Tightening Down Fitting. Failure To Do So Will Result In Permanent Damage Voiding All Warranties.
Application:
Volkswagen Type 1 Bug 1300-1600cc Engines
Volkswagen Type 1 Karmann Ghia 1300-1600cc Engines
Volkswagen Type 2 Bus 1300-1600cc Engines
Use This Oil Pump With 4 Bolt Dished Type Camshaft
