Description

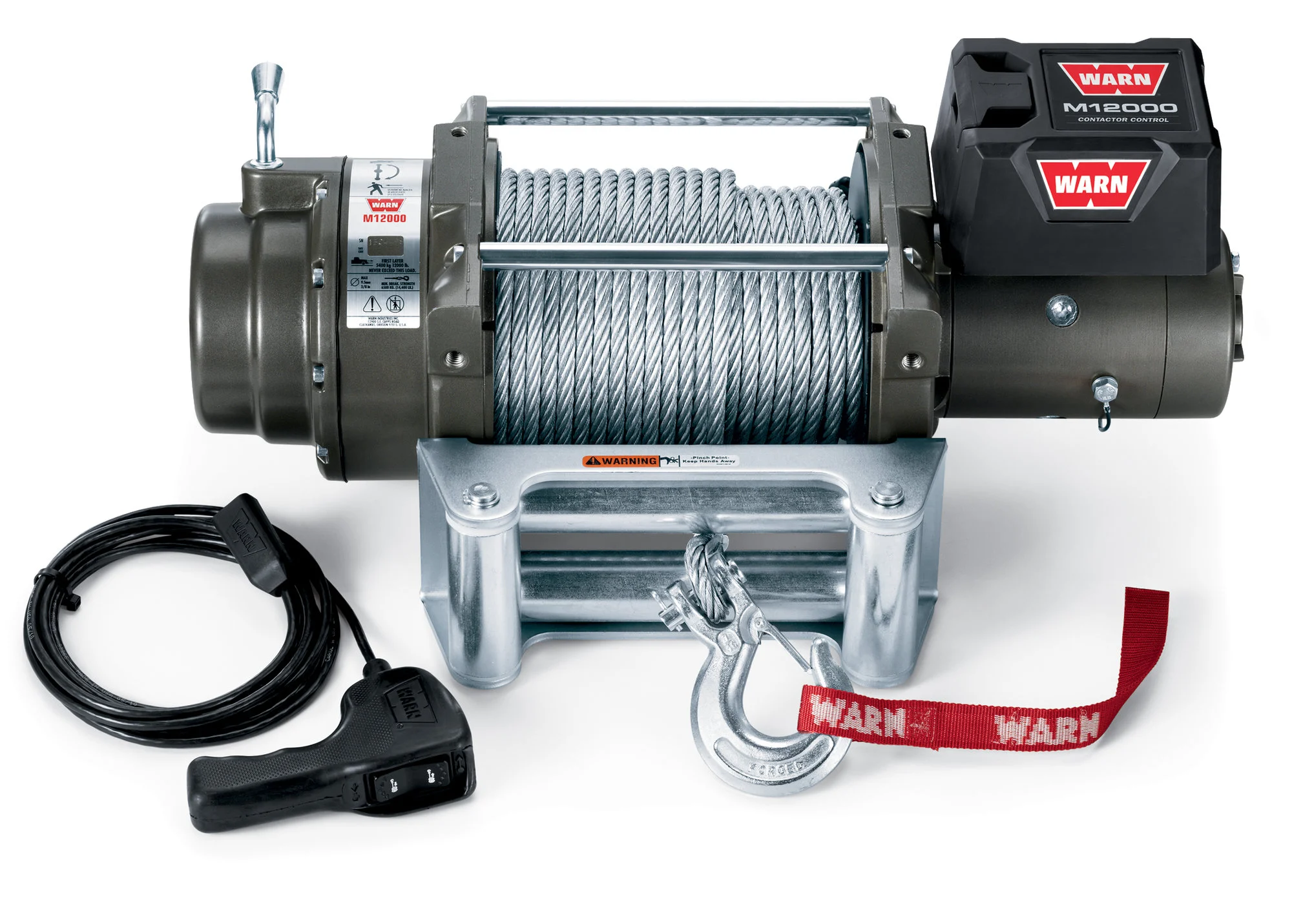

DescriptionFor heavy-duty winching needs, this winch is a champion workhorse. Big torque, power and quick no-load retrieval speed is 30 feet per minute. Its design is low profile, so it’ll fit where you want. And it’s powered by the 4.6-hp Series Wound™ motor and our proven three-stage planetary gear train. With 125 ft. of 3/8″ wire rope, the WARN M12000 can solve most any pulling problem.
Wireless Remote Control System can be added which is also available separately.
|
|||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||
| Above performance specs are based on first layer of drum | |||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||
| Winch Dimensions: 24.37″ L. x 8.45″ D. x 11″ H. (6.19mm L. x 214.63mm D. x 279mm H.) |
|||||||||||||||||||||||||||||||
| Mounting Bolt Pattern: 10.0″ x 4.5″ (254mm x 114.3mm) |
Installation NotesInstallation Difficulty:Level 2Intermediate
Operator’s Manual
Installation Time:1-2 hours Installation
Instructions Parts Included
125′, 3/8″diameter (38m, 9.5mm diam)
12V 4.6 hp, 24V 2.5 hp Series Wound Motor
Remote switch, 12′ (3.7m) lead
Direct Drive Cone Break
Spring- loaded control switches
Contactor Control Pack
3-Stage Planetary Gears with a 216.1 Ratio
Sliding Ring Gear clutch for free spooling
Weather-shielded solenoids. Color-coded cables and connectors.
Roller Fairlead
Warranty Limited Lifetime Mechanical Warranty & 7 Year Electrical Warranty
