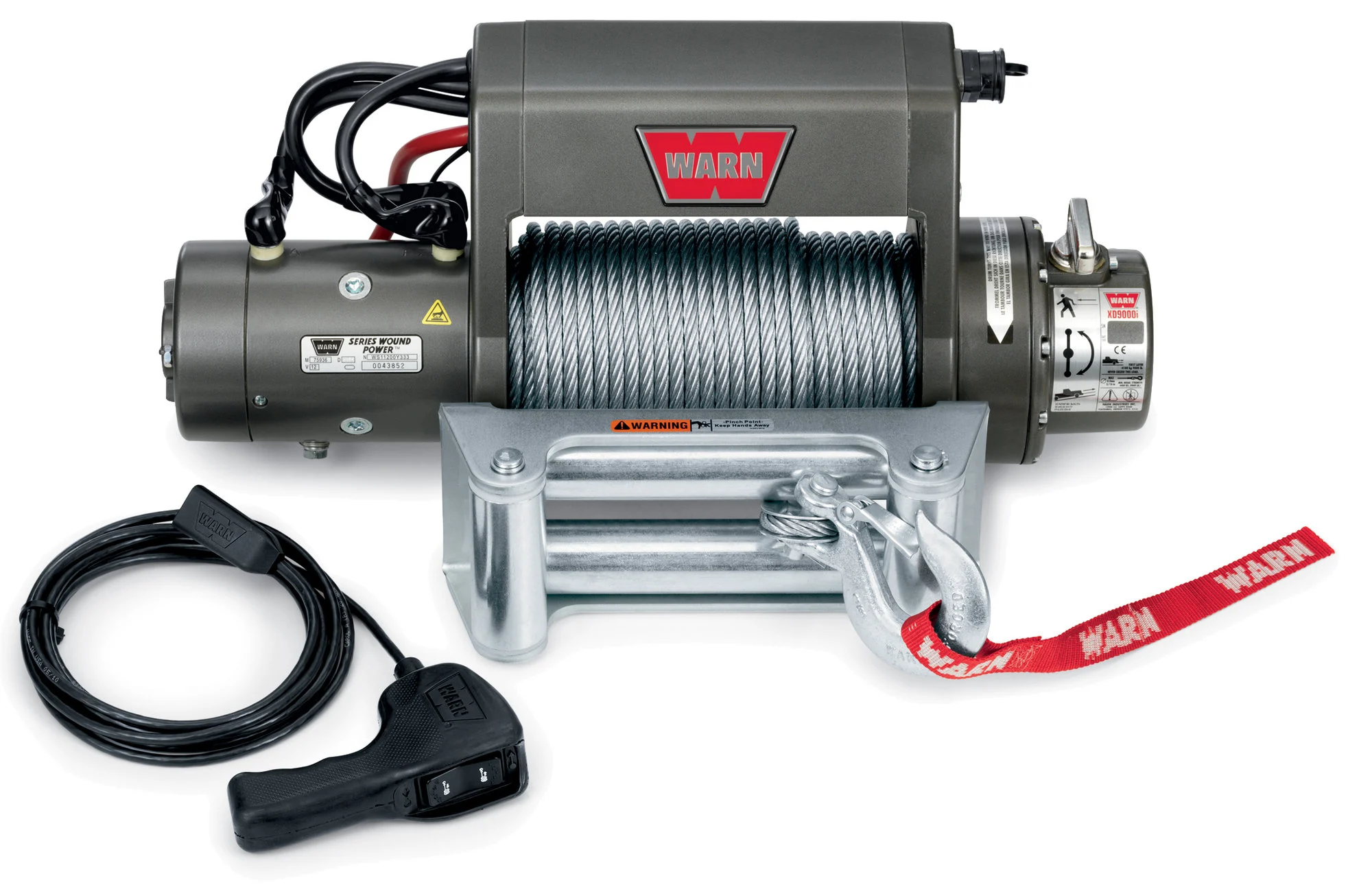

WARN 27550 XD9000i Self-Recovery Winch

WARN 27550 XD9000i Self-Recovery Winch

Original price was: $2,519.99.Current price is: $296.99.

DescriptionYou’ll probably see more XD9000i winches on trail rigs than any other winch. No load line speed of 38-feet per minute and three-stage planetary gearing and the ability to run cool with low amp draw for long winching cycles are just a few reasons why.Wireless Remote Control System can be added which is also available…

SKU: 3273
Category: ,
Tags:

Description

DescriptionYou’ll probably see more XD9000i winches on trail rigs than any other winch. No load line speed of 38-feet per minute and three-stage planetary gearing and the ability to run cool with low amp draw for long winching cycles are just a few reasons why.
Wireless Remote Control System can be added which is also available separately.

XD9000i SPECS/PART NUMBERS
Part Number: PN 27550 CE (12V DC)
Rated Line Pull: 9000 lbs. (4080 kgs.) single-line
Motor: 12V 4.6 hp, 24V 2.5 hp, Series Wound™
Remote Control: Remote switch, 12′ (3.7m) lead
Geartrain: 3-Stage Planetary
Gear Ratio: 156:1
Lubrication: Aeroshell #17
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum Diameter/Length: 2.5″/9.0″ (6.4cm/23cm)
Weight: 85 lbs. (38.5 kgs.)
Wire Rope: 125′, 5/16″ diameter (38m, 8mm diameter)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72″ (1.83m)
Finish: Argent Powder Coat
Nuts/Bolts: PN 39570
CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, Manuals, Safety Hook and Thimble.

12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)		 Line Speed
FT./min(M/min.)		 Motor
Current		 Pull by layer
layer/Lbs(Kgs.)
0 38(11.6) 70 amps 1/9000(4082)
2000(910) 14.4(4.39) 180 amps 2/8190(3715)
4000(1810) 11(3.35) 255 amps 3/7500(3402)
6000(2720) 8.67(2.64) 330 amps 4/7010(3180)
8000(3630) 6.88(2.10) 415 amps 5/6570(2980)
9000(4080) 6.38(1.94) 460 amps

Above performance specs are based on first layer of drum

Winch Dimensions: 21.8″ L. x 6.3″ D. x 9.94″ H.
(553mm L. x 160mm D. x 252mm H.)
Mounting Bolt Pattern: 10.0″ x 4.5″ (254mm x 114.3mm)

Installation NotesInstallation Difficulty:Level 2IntermediateInstallation Time:1-2 hours Installation
Instructions Parts Included

125′, 5/16″ diameter (38m, 8mm diameter)
Zinc plated Roller Fairlead
12V 4.8 hp Series Wound™ Motor
Remote switch, 12′ (3.7m) lead
Spring- loaded control switches
Automatic Direct Drive Cone Brake
3-Stage Planetary with a 156:1 ratio
Sliding Ring Gear Clutch for freespooling
Contactor Control Box
Color-coded 2 gauge, 72″ cables and connectors.

Warranty Limited Lifetime Mechanical Warranty & 7 Year Electrical Warranty
