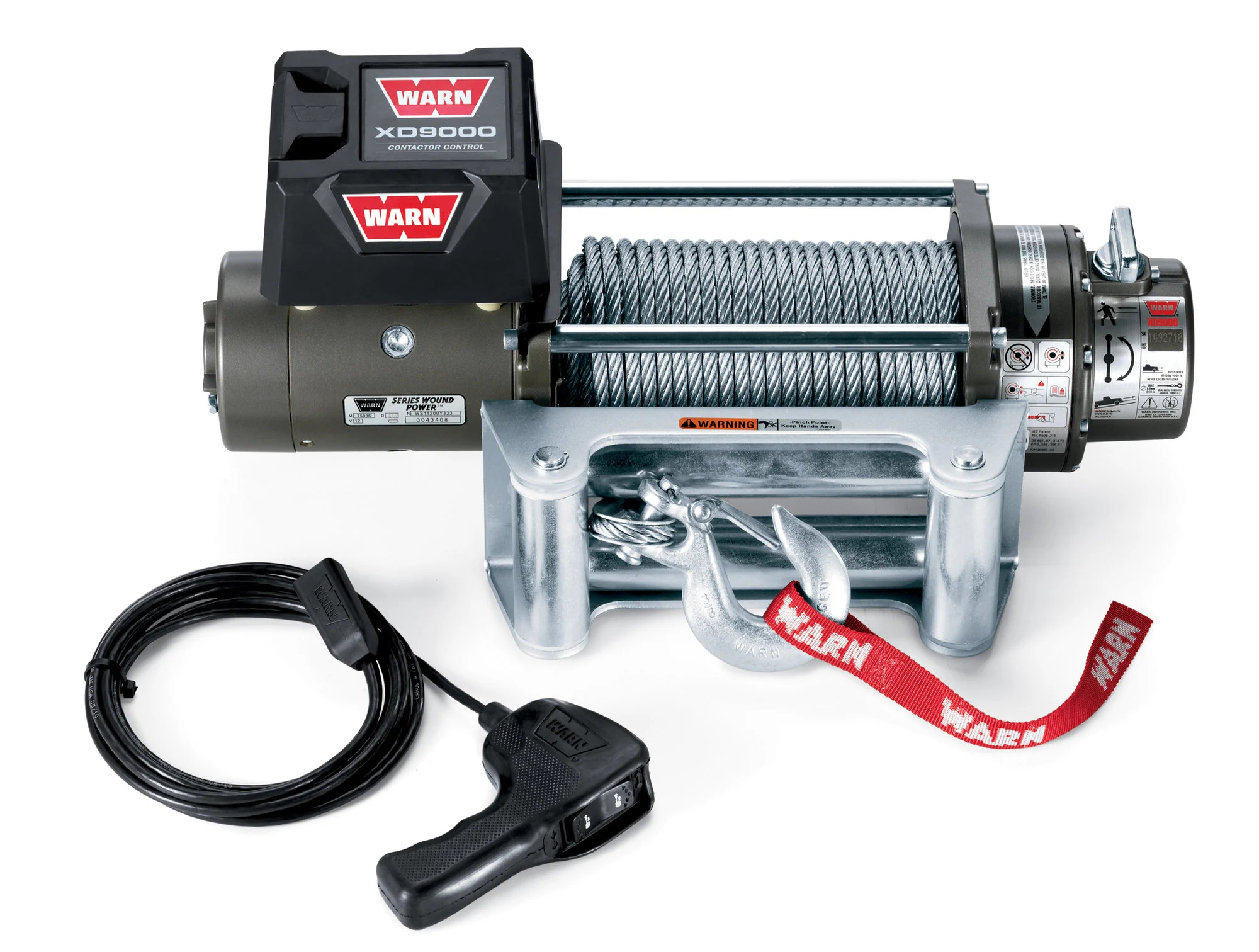

DescriptionA long-time best seller, the XD9000’s compact body and separate control pack lets it work effectively in very tight spaces. It uses the 4.6 hp Series Wound™ motor and three-stage planetary gearing offered on most of their winches, so torque and line speed are outstanding. A quiet, double-durable winch, pure and simple.
Wireless Remote Control System can be added which is also available separately.
XD9000 SPECS/PART NUMBERS
Part Numbers: PN 28500 CE (12V DC) , PN 265012 CE (24V DC)
Rated Line Pull: 9000 lbs. (4080 kgs.) single-line
Motor: 12V 4.6 hp, 24V 2.5 hp Series Wound™
Remote Control: Remote switch, 12′ (3.7m) lead
Geartrain: 3-Stage Planetary
Gear Ratio: 156:1
Lubrication: Aeroshell #17
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum Diameter/Length: 2.5″/9.0″ (6.4cm/23cm)
Weight: 78 lbs. (35 kgs.)
Wire Rope: 100′, 5/16″diameter (30m, 8mm diameter)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72″ (1.83m)
Finish: Argent Powder Coat
Nuts/Bolts: PN 39625
CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, manuals, roller fairlead, safety hook and thimble.
12V DC PERFORMANCE SPECS
Line PullLbs.(Kgs.)
Line SpeedFT./min(M/min.)
MotorCurrent
Pull by layerlayer/Lbs(Kgs.)
0
38(11.6)
70 amps
1/9000(4082)
2000(910)
14.4(4.39)
180 amps
2/8190(3715)
4000(1810)
11(3.35)
255 amps
3/7500(3402)
6000(2720)
8.67(2.64)
330 amps
4/7010(3180)
8000(3630)
6.88(2.10)
415 amps
9000(4080)
6.38(1.94)
460 amps
Above performance specs are based on first layer of drum
Winch Dimensions: 21.8″ L. x 6.3″ D. x 7.6″ H.(555mm L. x 160mm D. x 193mm H.)
Mounting Bolt Pattern: 10.0″ x 4.5″ (254mm x 114.3mm)
Installation NotesInstallation Difficulty:Level 2IntermediateWarn winch mount required for installation. Warn Solenoid Bracket sold separately.Installation Time:1-2 hours Installation
Instructions Parts Included
XD9000 Winch
Series Wound Motor
100′, 5/16″ diam. (30m, 8mm diam.) Wire Rope
Roller Fairlead
12′ Wired Remote Control
Warranty Limited Lifetime Mechanical Warranty & 7 Year Electrical Warranty
