Description

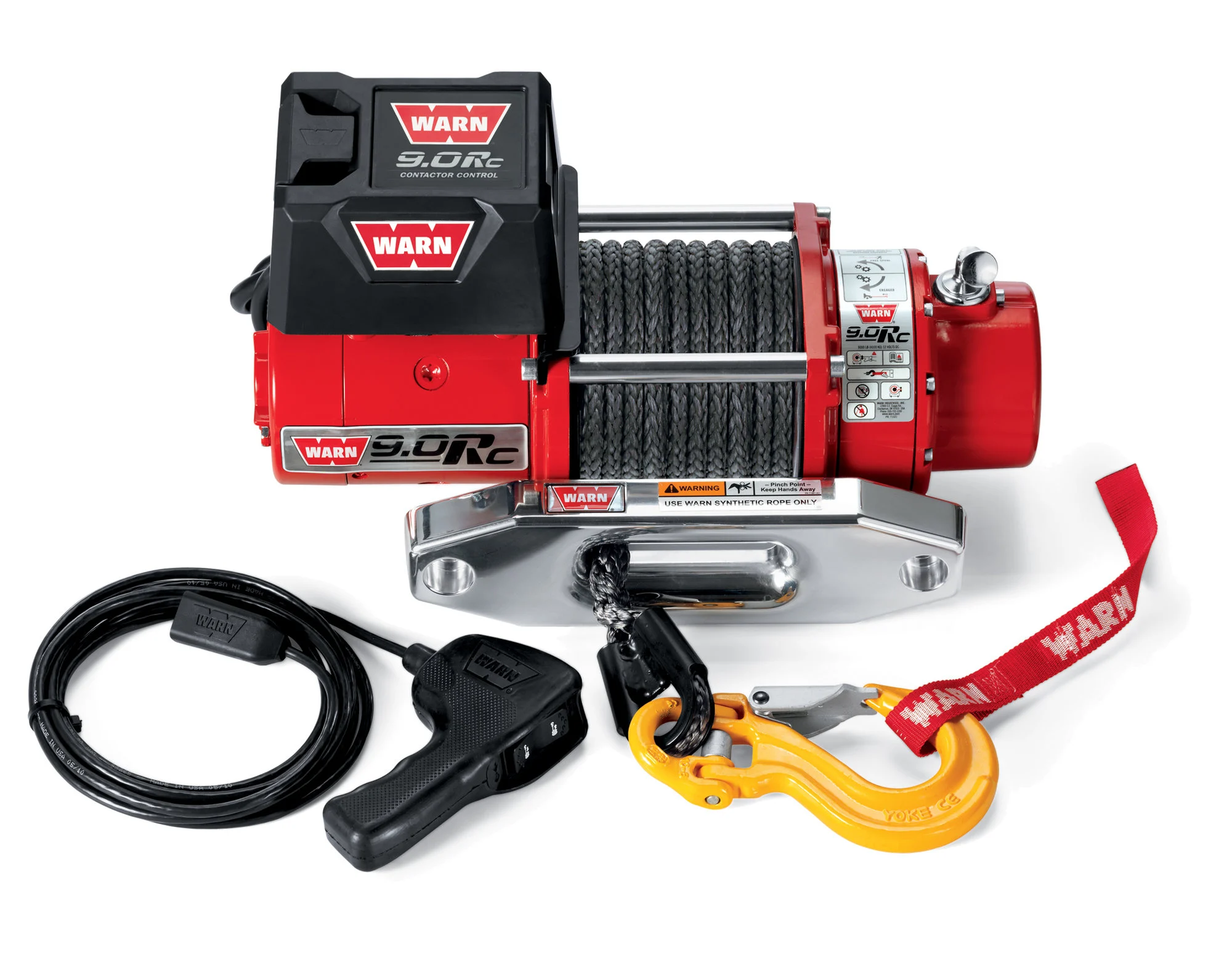

DescriptionCompetitive rock crawling rigs need a low-profile, lightweight winch like the WARN 9.0Rc that delivers maximum power in a compact, 54-lb. unit. The 9.0Rc is a short-drum, 9,000 lb. capacity winch that features a 4.8 hp series wound motor with fast line speeds. An exclusive, multi-segment cam actuated brake gives positive operator control during winching. The 9.0Rc comes complete with 50′ of 3/8″ diameter synthetic rope. Features include gloss red paint; a rugged, 360-degree swivel hook and thimble; an aluminum hawse fairlead; extreme duty winch sealing; and a “Ballistic Nylon” Sliding Sleeve that provides extra protection against abrasion and wear. Competitive rock crawling means tackling tough climbs and tight turns. That’s why rock crawling rigs need a low-profile, lightweight winch like the WARN 9.0Rc that delivers maximum power in a compact, 54-lb. unit.
Like its professional counterpart, the 9.0R, the 9.0Rc is a short-drum, 9,000 lb. capacity winch that features a 4.8 hp Series Wound Motor for fast line speeds. An exclusive, multi-segment Cam Actuated Brake gives positive operator control during winching.
The 9.0Rc comes standard with 50′ of 3/8″ diameter synthetic rope. Other features include: a chromate undercoating and gloss red paint that provide superior corrosion resistance; a rugged, 360-degree swivel hook and thimble; an aluminum hawse fairlead; extreme duty winch sealing; and a “Ballistic Nylon” Sliding Sleeve that provides extra protection against abrasion and wear.
The 9.0Rc – a winch built for rock crawlers looking for efficiency, reliability and the legendary WARN performance.
| 9.0Rc SPECS/PART NUMBER |
| Part Number: 71550 |
| Rated Line Pull: 9000 lbs. (4080 kgs.) single-line |
| Motor: Series Wound, 12V 4.8 hp |
| Remote Control: Remote switch, 12′ (3.7m) lead, S2 elements, integrated flashlight |
| Geartrain: 3-Stage Planetary |
| Gear Ratio: 216:1 |
| Lubrication: Aeroshell #17 |
| Clutch (freespooling): Sliding Ring Gear |
| Brake: Automatic Direct Drive Cone |
| Drum Diameter/Length: 2.75″/4.75″ (7.0cm/12cm) |
| Weight: 54 lbs. (24.8 kgs) |
| Rope: 50′, 3/8″ Synthetic Rope |
| Fairlead: Polished Aluminum Hawse |
| Recommended Battery: 650 CCA minimum for winching |
| Battery Leads: 2 gauge, 72″ (1.83m) |
| Finish: Chromate with high-gloss red paint |
| Nuts/Bolts: PN 39625 |
| PERFORMANCE SPECIFICATIONS | |||
| Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 | 42 (12.8) | 80 amps | 1/900 (4082) |
| 2000 | 16 (4.88) | 200 amps | 2/7280 (3302) |
| 4000 | 11.9 (3.63) | 285 amps | 3/6670 (3026) |
| 6000 | 9.79 (2.98) | 350 amps | 4/6230 (2826) |
| 8000 | 8.01 (2.44) | 435 amps | |
| 9000 | 6.4 (1.94) | 465 amps |
Above performance specs are based on first layer of drum Installation NotesInstallation Difficulty:Level 2IntermediateInstallation Time:1-2 hoursParts Included
50′ of 3/8″ diameter Synthetic Rope
Polished Aluminum Hawse Fairlead
12V 4.8 hp Series Wound Motor
2 gauge, 72″ (1.83m) Battery Leads
Warranty Limited Lifetime Mechanical Warranty & 7 Year Electrical Warranty
