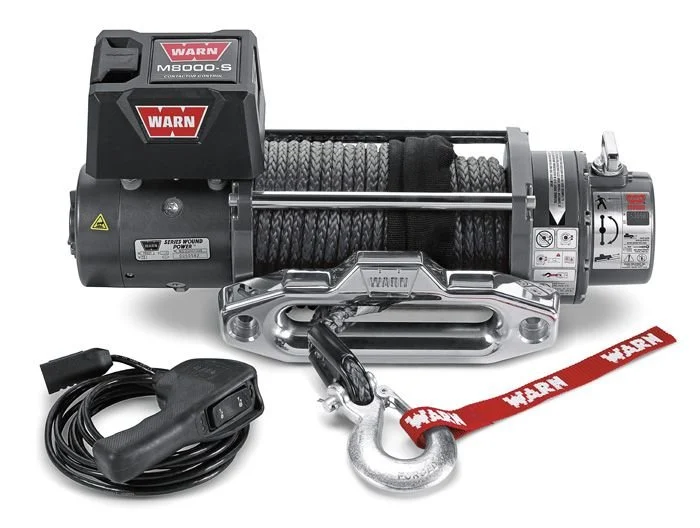

WARN 87800 M8000 Self-Recovery Winch (12V DC) 100′ Spydura Synthetic Rope and Polished Aluminum Hawse Fairlead

Description

DescriptionCompact. Tough. An outstanding value for trucks, sport utility vehicles and Jeeps. The M8000, with its 4.8-hp Series Wound motor and 3-stage planetary geartrain, packs 8,000 lbs. of pulling power to get the job done. Available with 100′ Spydura Synthetic rope and hawse fairlead. Pulls a fast 8 ft. per minute at rated load.
Wireless Remote Control System can be added which is also available separately.

M8000-M8000-s SPECS/PART NUMBERS

Part Number: 26502 (wire rope, 12V), 88502 (wire rope, 12V, CE, International sales only), 265032 (wire rope, 24V), 87800 (synthetic rope, 12V, currently not CE compliant

Rated Line Pull: 8000 lbs. (3630 kgs.) single-line

Motor: 12V 4.8 hp, Series Wound™

Remote Control: Remote switch, 12′ (3.7m) lead

Geartrain: 3-Stage Planetary

Gear Ratio: 216:1

Lubrication: Aeroshell #17

Clutch (freespooling): Sliding Ring Gear

Brake: Automatic Direct Drive Cone

Drum Diameter/Length: 2.5″/9.0″ (6.4cm/23cm)

Weight: 55 lbs. (25 kgs.)

Rope: Spydura&#8482 synthetic — 100′, 3/8″ diam.

Fairlead: Full radius polished aluminum hawse

Recommended Battery: 650 CCA minimum for winching

Battery Leads: 2 gauge, 72″ (1.83m)

Finish: Argent Gray Powder Coat

Nuts/Bolts: PN 39625

12V DC PERFORMANCE SPECS

Line PullLbs.(Kgs.)

Line SpeedFT./min(M/min.)
MotorCurrent
Pull by layerlayer/Lbs(Kgs.)

0

42(12.8)
80 amps
1/8000(3629)

2000(910)
16(4.88)

200 amps
2/7280(3302)

4000(1810)
11.9(3.63)
285 amps

3/6670(3026)

6000(2720)
9.79(2.98)
350 amps
4/6230(2826)

8000(3630)
8.01(2.44)
435 amps

Above performance specs are based on first layer of drum

Winch Dimensions: 21.04″ L. x 6.3″ D. x 7.6″ H.(534mm L. x 160m D. x 193mm H.)

Mounting Bolt Pattern: 10.0″ x 4.5″ (254mm x 114.3mm)

Installation NotesInstallation Difficulty:Level 2Intermediate

Warn winch mount required for installation.

Installation Time:1-2 hours Installation
Instructions Parts Included

100′, 3/8″ Spydura&#8482 Synthetic Rope with Hook and Protective Sleeve
12V 4.8 hp Series Wound Motor
Remote switch, 12′ (3.7m) lead
Spring- loaded control switches
Automatic Direct Drive Cone Brake
3-Stage Planetary with a 216:1 ratio
Sliding Ring Gear Clutch for freespooling
Contactor Control Box
Color-coded 2 gauge, 72″ cables and connectors.

Warranty Limited Lifetime Mechanical Warranty & 7 Year Electrical Warranty
