Description
SUSPENSION LIFT KIT. The BDS 3.5-Inch Suspension Lift Kit with NX2 Nitro Shocks is engineered specifically for 2019-2023 Ford Ranger 4WD models with factory aluminum knuckles, excluding Tremor versions. It raises the vehicle stance and capability by improving tire clearance and providing a 3.5-inch front lift with 1-inch rear lift shackles while maintaining proper suspension geometry and driveline alignment for dependable performance and a factory-like ride.

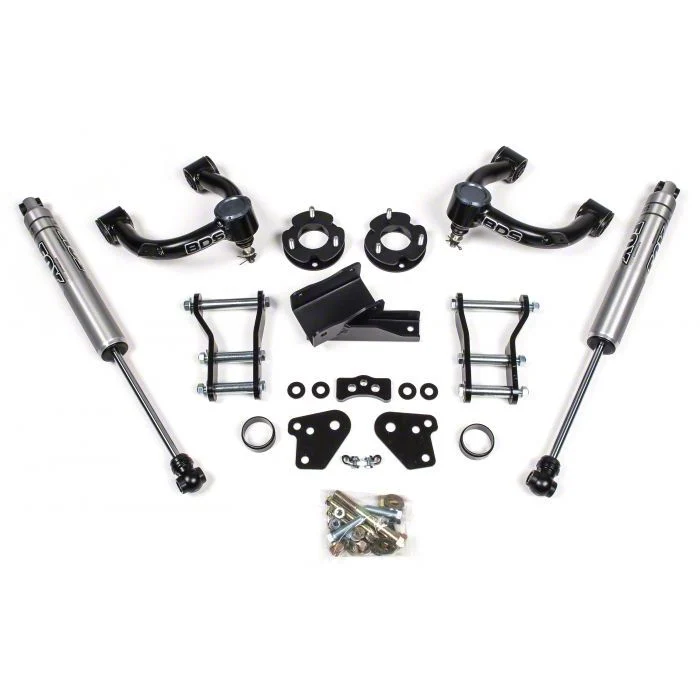

CONSTRUCTION AND APPEARANCE. This kit includes high-strength steel components such as tubular upper control arms made from 1.5-inch outer diameter steel with greaseable ball joints, steel top mount strut spacers, pre-load spacers, and differential relocation brackets. The shocks are available in NX2 Nitro Nitrogen-charged twin-tube or FOX 2.0 Performance Series options, both designed for durability and corrosion resistance with a silver powder coat finish.
INSTALLATION. Installation requires moderate mechanical skill and common specialty tools such as a strut compressor and axle nut socket. This kit features a 100% bolt-on design with no drilling or permanent modifications necessary, allowing for a straightforward upgrade process.
APPLICATION. Designed exclusively for 2019-2023 Ford Ranger 4WD models equipped with factory aluminum steering knuckles, excluding Tremor packages, and not compatible with vehicles that have cast steel knuckles. Recommended tires are 285/65R18 or 305/55R20 on appropriately sized wheels with a minimum 93.1mm hub bore; larger tires may require trimming or specific wheel selections to maintain optimal clearance and performance.
BDS BDS1545H
CA Residents: WARNING: Cancer and Reproductive Harm
- 3.5 Inch Suspension Lift Leveling Kit Specifically Designed For 2019-2023 Ford Ranger 4WD Models With Factory Aluminum Knuckles, Excluding Tremor
- Improves Tire Clearance While Maintaining Proper Suspension And Driveline Geometry
- Front End Features Steel Top Mount Strut Spacers And Pre-Load Spacers
- Includes Differential Relocation Brackets To Correct CV Axle Angle
- Equipped With Tubular Upper Control Arms Constructed From 1.5 Inch OD Tubular Steel With Greaseable Ball Joints For Strength And Increased Travel
- Rear Suspension Upgraded With 1 Inch Heavy Duty Lift Shackles And Custom-Tuned Shocks
- Shock Options Include NX2 Nitro Nitrogen-Charged Twin-Tube And FOX 2.0 Performance Series
- Designed To Maintain Factory Like Ride Quality And Suspension Geometry
- Recommended Tire Sizes Include 285/65R18 And 305/55R20, With Minimum 93.1mm Hub Bore For Aftermarket Wheels; Larger Tires May Require Fender Trimming Or Specific Wheel Specifications
- Not Compatible With Trucks Equipped With Cast Steel Steering Knuckles
| Brand | BDS |
| Lift Height | 3.50 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 33 Inch |
| Brand of Shocks | BDS |
| Rear Lift Type | Spacer |
| Shock Style | Non-Reservoir |
