Description
Performance Enhancement. The BDS 4-Inch Suspension Lift Kit with FOX 2.0 Performance Shocks enhances the stance, performance, and offroad capabilities of 2013-2018 and 2019-2021 RAM 1500 Classic 4WD trucks equipped with factory rear air ride. Designed to provide clearance for up to 35-inch tires, this lift kit improves ground clearance and corrects suspension and steering geometry for confident on-road handling and rugged offroad durability.
Construction and Appearance. This kit features high-quality materials such as 1/4-inch thick laser-cut steel crossmembers and heavy duty steel components. The CNC-machined ductile iron steering knuckles and suspension hardware are engineered for strength and precision. The FOX 2.0 shocks have a 2-inch impact-extruded aluminum body with clear anodized finish and CNC machined aluminum mounting ends, combining durability with a professional appearance.
Installation. Installation of this kit is very difficult and is best performed by experienced technicians due to the complexity of the factory air ride system. Specialty tools, including a 36mm socket, are required. No drilling is needed, but careful handling is strongly recommended to preserve the functionality of the air ride suspension.
Warranty. This suspension lift kit includes a Factory Protection Plus drivetrain warranty for additional peace of mind.
Application. Designed specifically to fit 2013-2018 RAM 1500 4WD and 2019-2021 RAM 1500 Classic 4WD trucks equipped with the factory air ride suspension system. This kit is not intended for non-air ride models or other RAM 1500 generations.
BDS BDS1623FS
CA Residents: WARNING: Cancer and Reproductive Harm

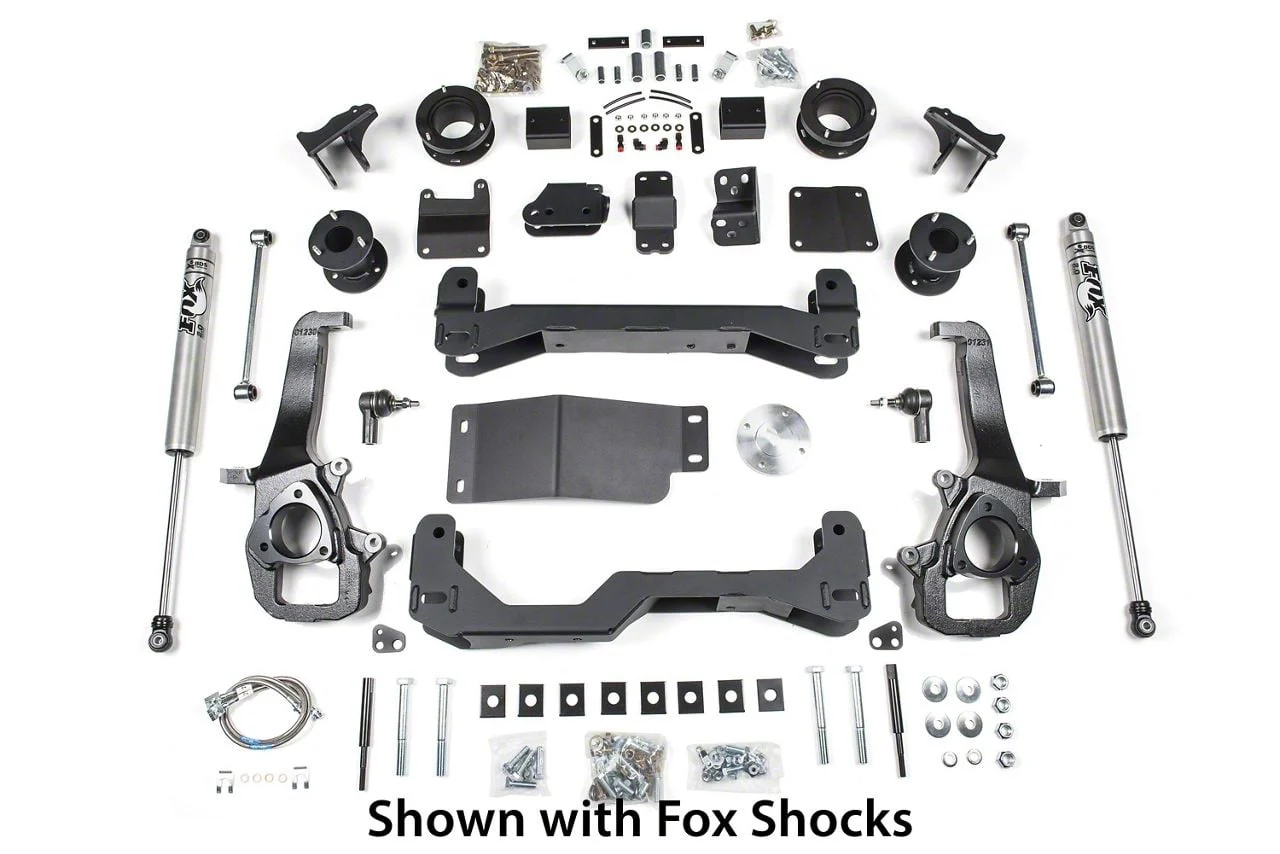

- Steps Up Performance And Capability Of 2013-2018 And 2019-2021 RAM 1500 Classic 4WD Trucks Equipped With Factory Rear Air Ride
- Provides 4-Inch Front Suspension Lift And 2.5-Inch Rear Lift With Clearance For Up To 35″ Tires
- Features High-Clearance 1/4-Inch Thick Laser-Cut Steel Crossmembers For Improved Ground Clearance, Strength, And Offroad Protection
- Includes Top Mounted Strut Spacers And Heavy Duty High-Arched Crossmembers
- Multipoint Differential Relocation Brackets For Front Axle To Improve CV Angles And Vehicle Dynamics
- CNC-Machined Ductile Iron Steering Knuckles And Replacement Tie Rod Ends Correct Steering Geometry While Maintaining ESC Compliance
- Sway Bar Drops, Bump Stop Extensions, Stainless Steel Braided Brake Lines, And CV Spacers Included For Front Suspension
- Rear Suspension Includes Air Bag Spacers, Rear Upper Control Arm Relocation Brackets, Track Bar Relocation Bracket, Bump Stop Extensions, And Sway Bar Links
- New Air Lines, Fittings, And Ride Height Sensor Brackets Maintain Factory Air Ride Functionality
- Choice Of NX2 Nitro Series Or FOX 2.0 IFP Performance Series Gas Shocks For Rear Suspension
- Heavy Duty Skid Plates Included For Enhanced Offroad Protection
| Brand | BDS |
| Lift Height | 4.00 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Brand of Shocks | Fox |
| Rear Lift Type | Spacer |
| Shock Style | Non-Reservoir |
